DTC P0646:00 [PCM (SKYACTIV-X)]

id0102u9587900

Outline

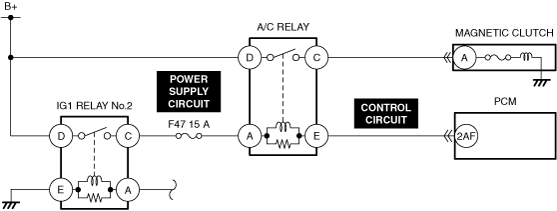

System malfunction location

A/C compressor magnetic clutch circuit low input

Detection condition

•  The A/C compressor magnetic clutch control voltage at the PCM terminal 2AF is low for a continuous 5 s relative to the PCM control signal.

Fail-safe

•  Release the magnetic clutch.

Possible cause

•  A/C relay malfunction

•  F47 15 A fuse malfunction

•  Short to ground in A/C relay power supply circuit

•  Open circuit in A/C relay power supply circuit

•  Short to ground in A/C relay control circuit

•  PCM connector or terminals malfunction

•  PCM malfunction

System malfunction location	A/C compressor magnetic clutch circuit low input
Detection condition	• The A/C compressor magnetic clutch control voltage at the PCM terminal 2AF is low for a continuous 5 s relative to the PCM control signal.
Fail-safe	• Release the magnetic clutch.
Possible cause	• A/C relay malfunction • F47 15 A fuse malfunction • Short to ground in A/C relay power supply circuit • Open circuit in A/C relay power supply circuit • Short to ground in A/C relay control circuit • PCM connector or terminals malfunction • PCM malfunction

Diagnostic Procedure

Step

Inspection

Results

Action

1

RECORD VEHICLE STATUS WHEN DTC WAS DETECTED TO UTILIZE WITH REPEATABILITY VERIFICATION

•  Record the freeze frame data/snapshot data.

Note

•  Recording can be facilitated using the screen capture function of the PC.

—

Go to the next step.

2

VERIFY RELATED REPAIR INFORMATION OR SERVICE INFORMATION AVAILABILITY

•  Verify related Service Bulletins, on-line repair information, or Service Information availability.

•  Is any related Information available?

Yes

Perform repair or diagnosis according to the available information.

•  If the vehicle is not repaired, go to the next step.

No

Go to the next step.

3

INSPECT A/C RELAY FOR MALFUNCTION

•  Inspect the applicable part.
(See RELAY INSPECTION.)

•  Is the part normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

(See RELAY LOCATION [(E)].)

4

INSPECT F47 15 A FUSE

•  Remove the F47 15 A fuse.

•  Inspect the F47 15 A fuse.

•  Is the fuse normal?

Yes

Reinstall the F47 15 A fuse, then go to the next step.

No

Replace the F47 15 A fuse and perform the repair completion verification.

5

INSPECT A/C RELAY POWER SUPPLY CIRCUIT FOR SHORT TO GROUND

•  Inspect the applicable circuit for a short to ground.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

6

INSPECT A/C RELAY POWER SUPPLY CIRCUIT FOR OPEN CIRCUIT

•  Inspect the applicable circuit for open circuit.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

7

INSPECT A/C RELAY CONTROL CIRCUIT FOR SHORT TO GROUND

•  Inspect the applicable circuit for a short to ground.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

8

INSPECT PCM CONNECTOR FOR MALFUNCTION

•  Inspect the applicable connector and terminal.
(See CONNECTOR INSPECTION.)

•  Are the connector and terminal normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

Repair completion verification 1

VERIFY THAT VEHICLE IS REPAIRED

•  Install/connect the part removed/disconnected during the troubleshooting procedure.

•  Clear the DTC recorded in the memory.
(See CLEARING DTC.)

•  Replicate the vehicle conditions at the time the DTC was detected using the following procedure.

―  Set the A/C temperature control to MAX COLD.

―  Turn the A/C switch on to operate the air conditioner.

―  Verify that cold air is flowing from the air vent.

•  Perform the DTC inspection for the PCM.
(See DTC INSPECTION.)

•  Is the same Pending DTC present?

Yes

Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.

(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].)

If the CAN communication is normal, perform the diagnosis from Step 1.

•  If the malfunction recurs, replace the PCM, then go to the next step.
(See PCM REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

No

Go to the next step.

Repair completion verification 2

VERIFY IF OTHER DTCs DISPLAYED

•  Perform the DTC inspection.
(See DTC INSPECTION.)

•  Are any other DTCs displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

No

DTC troubleshooting completed.
