BLOWN FUSES [SKYACTIV-G (E)]

id0103s48888s7

Description

• Fuse is damaged.

Troubleshooting Hints

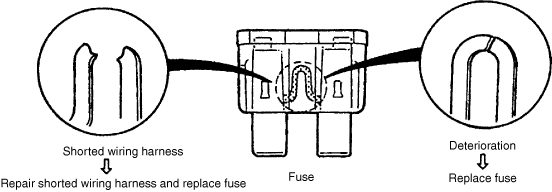

• Inspect condition of fuse.

am3zzw00034014

Damaged fuse

Related wiring harness

MAIN

•  F3 fuse

•  F4 fuse

•  F5 fuse

•  F7 fuse

•  F22 fuse

•  F26 fuse^*6

•  F27 fuse

•  F28 fuse

•  F43 fuse

•  F44 fuse

•  IG1 relay No.1

•  IG1 relay No.2

ALT/ST

•  Generator^*5

•  Starter

DCDC^*4

•  DC-DC converter (Mazda M Hybrid)

DCDC^*6

•  F55 fuse

F3

•  Sub relay

F4

•  Electric variable valve timing relay

F5

•  Main relay

F7

•  Fuel pump relay

F8

•  Electric variable valve timing relay

•  HO2S

•  Ignition coil/ion sensor No.1

•  Ignition coil/ion sensor No.2

•  Ignition coil/ion sensor No.3

•  Ignition coil/ion sensor No.4

•  A/F sensor

•  Intake CMP sensor

•  Exhaust CMP sensor

F10

•  Electric AT oil pump relay^*1

•  Cooling fan relay No.1

•  Cooling fan relay No.2

•  Active air shutter

•  Engine oil level sensor

•  DC-DC converter (Mazda M Hybrid)^*4

F12

•  Sub relay

•  OCV^*3

•  OCV for hydraulic variable valve timing system^*2

•  Engine oil solenoid valve

•  Purge solenoid valve

•  Compressor valve

•  Integrated starter generator (ISG)^*4

F16

•  Commander switch^*6

•  Instrument cluster^*7

•  BCM^*5

•  Ignition relay (IG1_STAB)^*5

F22

•  BCM

•  Instrument cluster^*7

•  Mazda M Hybrid battery^*4

F26^*6

•  Current sensor

F27

•  F45 fuse

F28

•  F16 fuse

F43

•  Cooling fan relay No.1

•  Cooling fan relay No.2

F44

•  Starter relay

F45

•  PCM

F47

•  DC-DC converter^*6

•  Ignition relay (IG1_STAB)^*6

•  Mazda M Hybrid battery^*4

•  DC-DC converter (Mazda M Hybrid)^*4

F49

•  BCM

F53

•  Fuel pump relay

•  PCM

F55^*6

•  DC-DC converter

Damaged fuse	Related wiring harness
MAIN	• F3 fuse • F4 fuse • F5 fuse • F7 fuse • F22 fuse • F26 fuse^*6 • F27 fuse • F28 fuse • F43 fuse • F44 fuse • IG1 relay No.1 • IG1 relay No.2
ALT/ST	• Generator^*5 • Starter
DCDC^*4	• DC-DC converter (Mazda M Hybrid)
DCDC^*6	• F55 fuse
F3	• Sub relay
F4	• Electric variable valve timing relay
F5	• Main relay
F7	• Fuel pump relay
F8	• Electric variable valve timing relay • HO2S • Ignition coil/ion sensor No.1 • Ignition coil/ion sensor No.2 • Ignition coil/ion sensor No.3 • Ignition coil/ion sensor No.4 • A/F sensor • Intake CMP sensor • Exhaust CMP sensor
F10	• Electric AT oil pump relay^1 • Cooling fan relay No.1 • Cooling fan relay No.2 • Active air shutter • Engine oil level sensor • DC-DC converter (Mazda M Hybrid)^4
F12	• Sub relay • OCV^3 • OCV for hydraulic variable valve timing system^2 • Engine oil solenoid valve • Purge solenoid valve • Compressor valve • Integrated starter generator (ISG)^*4
F16	• Commander switch^6 • Instrument cluster^7 • BCM^5 • Ignition relay (IG1_STAB)^5
F22	• BCM • Instrument cluster^7 • Mazda M Hybrid battery^4
F26^*6	• Current sensor
F27	• F45 fuse
F28	• F16 fuse
F43	• Cooling fan relay No.1 • Cooling fan relay No.2
F44	• Starter relay
F45	• PCM
F47	• DC-DC converter^6 • Ignition relay (IG1_STAB)^6 • Mazda M Hybrid battery^4 • DC-DC converter (Mazda M Hybrid)^4
F49	• BCM
F53	• Fuel pump relay • PCM
F55^*6	• DC-DC converter

*1 :ATX

*2 :Vehicles with cylinder deactivation

*3 :Vehicles without cylinder deactivation

*4 :Vehicles with Mazda M Hybrid

*5 :Vehicles without Mazda M Hybrid

*6 :Vehicles with i-stop, without Mazda M Hybrid

*7 :Vehicles with cruise control system
