Troubleshooting item
BLOWN FUSES
[TROUBLESHOOTING HINTS]
• Inspect condition of fuse.
BLOWN FUSES [SKYACTIV-D]
id0103s5888800
|
Troubleshooting item |
BLOWN FUSES |
|---|---|
|
[TROUBLESHOOTING HINTS]

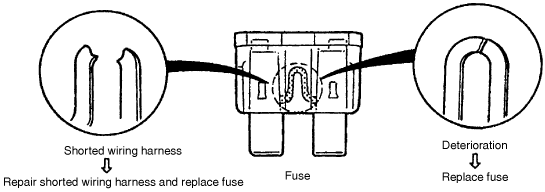

• Inspect condition of fuse.
|
|
|
|
|
Damaged fuse |
Related wiring harness |
|---|---|
|
MAIN
|
• F5 fuse
• F7 fuse
• F13 fuse
• F22 fuse
• F26 fuse
• F27 fuse
• F28 fuse
• F44 fuse
• IG1 relay No.1
• IG1 relay No.2
|
|
ALT/ST
|
• Generator
• Starter
|
|
FAN
|
• Cooling fan relay
|
|
GLOW/DCDC
|
• F55 fuse
• Glow control module
|
|
F5
|
• Main relay
|
|
F7
|
• Fuel warmer relay
|
|
F8
|
• PCM
• SCR relay
|
|
F10
|
• Active air shutter
• Electric AT oil pump relay
• Cooling fan relay
• Engine oil level sensor
• Blow-by heater relay
|
|
F12
|
• Engine oil solenoid valve
• Variable displacement control valve
• MAF sensor/IAT sensor No.1
• Glow control module
• Turbocharger solenoid valve
• Electric water pump
• A/F sensor
|
|
F13
|
• SCR relay
|
|
F16
|
• Instrument cluster
• BCM
• Ignition relay (IG1_STAB)
|
|
F22
|
• BCM
• Instrument cluster
|
|
F26
|
• Current sensor
|
|
F27
|
• F45 fuse
|
|
F28
|
• F16 fuse
|
|
F44
|
• Starter relay
|
|
F45
|
• PCM
|
|
F47
|
• Ignition relay (IG1_STAB)
|
|
F49
|
• BCM
|
|
F53
|
• Fuel warmer relay
• PCM
|
|
F55
|
• DC-DC converter
|
