ENGINE COVER REMOVAL/INSTALLATION [SKYACTIV-X 2.0]
id0110hf804300
Replacement Part
|
Spring pin
Quantity: 1
Location of use: Engine cover
|
1. Rotate the fasteners shown in the figure.
am3zzw00034961
|
2. Remove using the procedure shown in the figure.
3. Install in the reverse order of removal.

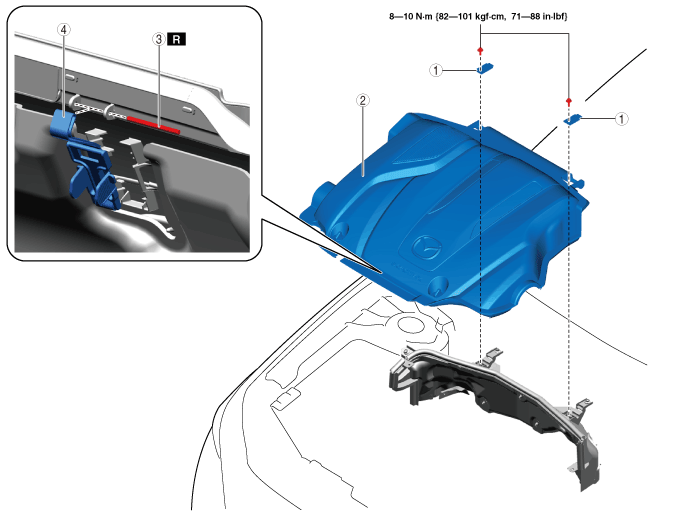

am3zzw00036994
|
|
1
|
Cap
|
|
2
|
Engine cover
|
|
3
|
Spring pin
|
|
4
|
Holder
|
