OIL CONTROL VALVE (OCV) FOR CYLINDER DEACTIVATION REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))]

Home  id0110u3810000

Warning

•   A hot engine can cause severe burns. Turn off the engine and wait until it is cool before servicing.

Caution

•  When removing the OCV for cylinder deactivation, be careful not to allow the engine oil to contact the surrounding parts. Otherwise, it could cause a malfunction in the surrounding parts or damage to the surrounding parts.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)

3.  Remove in the order indicated in the table.

4.  Install in the reverse order of removal.

OCV for No.1 cylinder deactivation

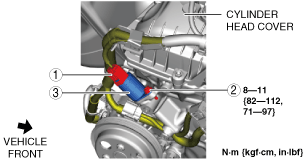

ac5wzw00011735

1	Connector
2	Bolt (See Bolt Installation Note.)
3	OCV for No.1 cylinder deactivation (See OCV For Cylinder Deactivation Installation Note.)

OCV for No.4 cylinder deactivation

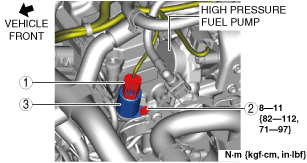

ac5wzw00011736

1	Connector
2	Bolt (See Bolt Installation Note.)
3	OCV for No.4 cylinder deactivation (See OCV For Cylinder Deactivation Installation Note.)

OCV For Cylinder Deactivation Installation Note

Caution

•  If the OCV for cylinder deactivation is dropped accidentally, replace with a new one. Otherwise, the OCV for cylinder deactivation may not operate normally.

•  Be aware of the following points, otherwise engine oil leakage could result.

―  Do not allow foreign matter to get caught when installing

―  Do not damage the O-ring of the OCV for cylinder deactivation

1.  Apply clean engine oil to the o-ring of the OCV for cylinder deactivation.

2.  Install the OCV for cylinder deactivation.

Bolt Installation Note

Caution

•  If the bolt is tightened with oil adhering, the bolt could be twisted and cut. Always degrease the bolt.
