ENGINE OIL REPLACEMENT [SKYACTIV-D 1.8]

ENGINE OIL REPLACEMENT [SKYACTIV-D 1.8]

 id0111t1800400

Replacement Part

Gasket

Quantity: 1

Location of use: Oil pan drain plug

Oil and Chemical Type

Engine oil

Type: Recommended oil


Operation After Replacing Engine Oil

1.  After replacing the engine oil, perform the following procedure.

STEP

ACTION

PAGE/CONDITION
1
Perform engine oil data reset procedure.
(See ENGINE OIL DATA RESET [SKYACTIV-D 1.8].)
2
Switch the ignition off.
—
3
Wait for 20 s.
—
4
Clear the DTCs.
(See BASIC KNOWLEDGE.)


Engine Oil Replacement

Warning
•  Hot engines and engine oil can cause severe burns. Turn off the engine and wait until it and the engine oil have cooled.
•  A vehicle that is lifted but not securely supported on safety stands is dangerous. It can slip or fall, causing death or serious injury. Never work around or under a lifted vehicle if it is not securely supported on safety stands.
•  Continuous exposure to USED engine oil has caused skin cancer in laboratory mice. Protect your skin by washing with soap and water immediately after working with engine oil.
Caution
•  If engine oil is spilled on the exhaust system, wipe it off completely. If you fail to wipe the spilled engine oil, it will produce fumes because of the heat.

1.  Position the vehicle on level ground.

2.  Remove the oil filler cap.

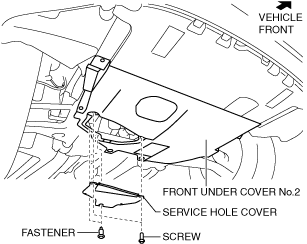

3.  Remove the service hole cover (installed to front under cover No.2) used to drain the engine oil.

am3zzw00030441

4.  Remove the service hole cover installed to the seal plate.

(1)  Turn the knob in the direction of the arrow show in the figure.
am3zzw00020000
(2)  Remove the service hole cover.

5.  Remove the oil pan drain plug.

am3zzw00032461

6.  Drain the engine oil into a container.

7.  Install the oil pan drain plug.

Note
•  The amount of residual oil in the engine can vary according to factors such as the replacement method and oil temperature. Verify the oil level after engine oil replacement.

8.  Refill with the following type and amount of engine oil.

Engine oil

Item

Specifications
Engine oil capacity (approx. quantity)
Oil replacement
4.7 L {5.0 US qt, 4.1 Imp qt}
Oil and oil filter replacement
5.1 L {5.4 US qt, 4.5 Imp qt}
Total (dry engine)
5.8 L {6.1 US qt, 5.1 Imp qt}
Recommended engine oil
Mazda Original Oil Supra DPF 0W-30
Mazda Original Oil Ultra DPF 5W-30
Alternative engine oil
ACEA C3
0W-30, 5W-30

9.  Install the oil filler cap.

10.  Start the engine and confirm that there is no oil leakage.

•  If there is oil leakage, repair or replace the applicable part.

11.  Inspect the oil level.

•  Verify that the oil level is between the F and L marks on the dipstick.

12.  Install the service hole cover.

13.  If the engine oil is replaced, perform “Operation After Replacing Engine Oil”. (See Operation After Replacing Engine Oil.)
