ENGINE OIL REPLACEMENT [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))]

id0111u1800400

Replacement Part

Gasket

Quantity: 1

Location of use: Oil pan drain plug

Oil and Chemical Type

Engine oil

Type: Recommended oil

Warning

• Hot engines and engine oil can cause severe burns. Turn off the engine and wait until it and the engine oil have cooled.

• A vehicle that is lifted but not securely supported on safety stands is dangerous. It can slip or fall, causing death or serious injury. Never work around or under a lifted vehicle if it is not securely supported on safety stands.

• Continuous exposure to USED engine oil has caused skin cancer in laboratory mice. Protect your skin by washing with soap and water immediately after working with engine oil.

Caution

• If engine oil is spilled on the exhaust system, wipe it off completely. If you fail to wipe the spilled engine oil, it will produce fumes because of the heat.

1. Position the vehicle on level ground.

2. Warm up the engine to allow the engine oil temperature to reach 60 °C {140 °F} or more.

3. Stop the engine and wait for 5 min or more.

4. Remove the oil filler cap.

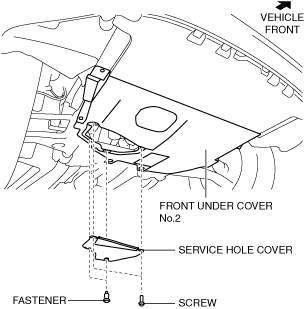

5. Remove the service hole cover (installed to front under cover No.2) used to drain the engine oil.

am6xuw00010350

6. Remove the oil pan drain plug.

am3zzw00032471

7. Drain the engine oil into a container.

8. Install the oil pan drain plug with a new gasket.

Note

• The amount of residual oil in the engine can vary according to factors such as the replacement method and oil temperature. Verify the oil level after engine oil replacement.

9. Refill with the following type and amount of engine oil.

Engine oil [Except Australian, Thailand and Chinese specs.]

Item		Specifications
Engine oil capacity [SKYACTIV-G 2.0] (approx. quantity)	Oil replacement	4.0 L {4.2 US qt, 3.5 lmp qt}
	Oil and oil filter replacement	4.2 L {4.4 US qt, 3.7 lmp qt}
	Total (dry engine)	4.9 L {5.2 US qt, 4.3 lmp qt}
Engine oil capacity [SKYACTIV-G 2.5] (approx. quantity)	Oil replacement	4.3 L {4.5 US qt, 3.8 lmp qt}
	Oil and oil filter replacement	4.5 L {4.8 US qt, 4.0 lmp qt}
	Total (dry engine)	5.4 L {5.7 US qt, 4.8 lmp qt}
Recommended engine oil		Mazda Original Oil Supra 0W-20
Recommended engine oil		Mazda Original Oil Ultra 5W-30
Alternative engine oil		API SL^*1 or higher or ILSAC GF-3 or higher 10W-30, 5W-20, 5W-30, 0W-20, 0W-30

*1 :Use API SM or higher or Kazakhstan.

Engine oil [Australian and Thailand specs.]

Item		Specifications
Engine oil capacity (approx. quantity)	Oil replacement	4.0 L {4.2 US qt, 3.5 lmp qt}
	Oil and oil filter replacement	4.2 L {4.4 US qt, 3.7 lmp qt}
	Total (dry engine)	4.9 L {5.2 US qt, 4.3 lmp qt}
Grade		API SL/SM/SN or ILSAC GF-3/GF-4/GF-5
Viscosity (SAE)		10W-30, 5W-20, 5W-30, 0W-20, 0W-30

Engine oil [Chinese specs.]

Item		Specifications
Engine oil capacity (approx. quantity)	Oil replacement	4.0 L {4.2 US qt, 3.5 lmp qt}
	Oil and oil filter replacement	4.2 L {4.4 US qt, 3.7 lmp qt}
	Total (dry engine)	4.9 L {5.2 US qt, 4.3 lmp qt}
Grade	API SL/SN/SN Plus
Viscosity (SAE)	10W-30, 5W-20, 5W-30, 0W-20, 0W-30

10. Install the oil filler cap.

11. Start the engine and confirm that there is no oil leakage.

• If there is oil leakage, repair or replace the applicable part.

12. Inspect the oil level. (See ENGINE OIL LEVEL INSPECTION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)

13. Install the service hole cover.

14. If the engine oil is replaced, perform engine oil data reset. (see ENGINE OIL LEVEL INSPECTION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)
