AIR PIPE REMOVAL/INSTALLATION [SKYACTIV-X 2.0]
id0113hf071000
Replacement part
|
Gasket
Quantity: 2
Location of use: Air pipe No.1
|
Gasket
Quantity: 2
Location of use: Air pipe No.2
|
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)
2. Open the engine cover. (See ENGINE COVER OPEN/CLOSE [SKYACTIV-X 2.0].)
3. Remove the bolts shown in the figure.
am3zzw00035626
|

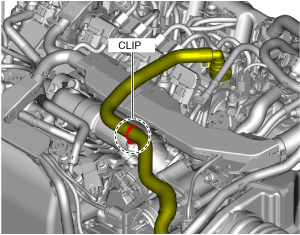

4. Disconnect the clip shown in the figure.
am3zzw00035627
|

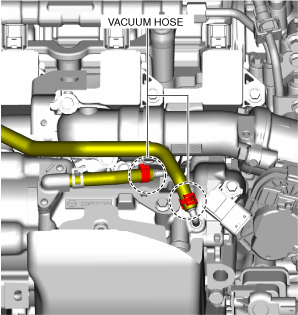

5. Disconnect the vacuum hoses shown in the figure.
am3zzw00035628
|

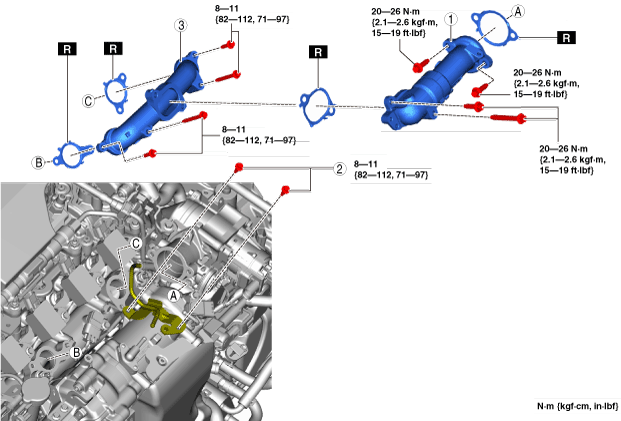

6. Remove using the procedure shown in the figure.
7. Install in the reverse order of removal.
am3zzw00035629
|
|
1
|
Air pipe No.1
|
|
2
|
Vacuum pipe bracket bolt
|
|
3
|
Air pipe No.2
|
