AIR CLEANER ELEMENT REMOVAL/INSTALLATION [SKYACTIV-X 2.0]
id0113hf800200
1. Open the engine cover. (See ENGINE COVER OPEN/CLOSE [SKYACTIV-X 2.0].)

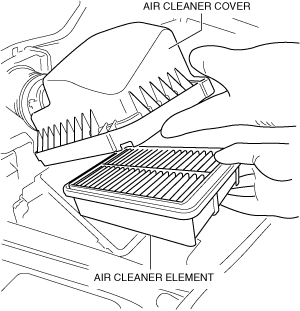

2. Remove the air cleaner element as shown in the figure. (See Air Cleaner Cover Installation Note.)
am3zzw00035640
|
Air Cleaner Cover Installation Note
1. Install the air cleaner cover as shown in the figure.
am3zzw00035641
|

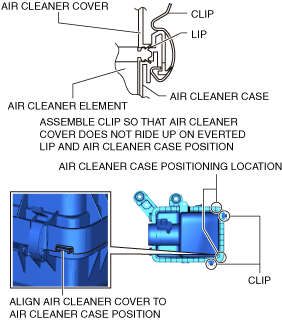

2. Secure the air cleaner cover to the air cleaner case using a clip as shown in the figure.
am3zzw00035642
|
