ACCELERATOR PEDAL REMOVAL/INSTALLATION [SKYACTIV-X 2.0]
id0113hf801400
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

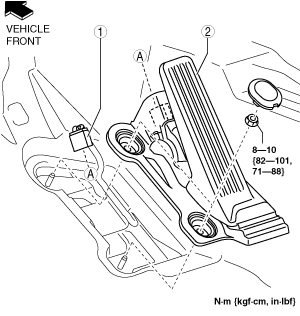

2. Remove in the order indicated in the table.
am3zzw00035643
|
|
1
|
APP sensor connector
|
|
2
|
Accelerator pedal
|
3. Install in the reverse order of removal.
