WATER-COOLED CHARGE AIR COOLER REMOVAL/INSTALLATION [SKYACTIV-D 1.8]
id0113q9702500
Replacement Part
|
Gasket
Quantity: 4
Location of use: Water-cooled charge air cooler
|
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)
2. Remove the intake manifold and intake shutter valve, and the water-cooled charge air cooler as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)
3. Remove the water-cooled charge air cooler from the intake manifold.
am3zzw00032151
|
4. Install in the reverse order of removal. (See Water-cooled Charge Air Cooler Installation Note.)
Water-cooled Charge Air Cooler Installation Note
1. Apply engine oil to position shown in figure.
ac3wzw00004668
|
2. Temporarily tighten the bolts shown in the figure by hand.
am3zzw00032152
|

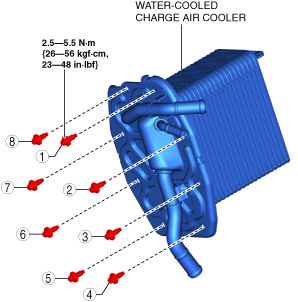

3. Tighten the bolts shown in the figure.
am3zzw00032153
|

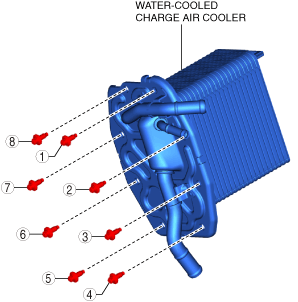

4. Tighten the bolts shown in the figure.
am3zzw00032154
|
