INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))]

Home  id0113u1801900

Replacement Part

Warning

•  A hot engine and intake air system can cause severe burns. Turn off the engine and wait until they are cool before removing the intake air system.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

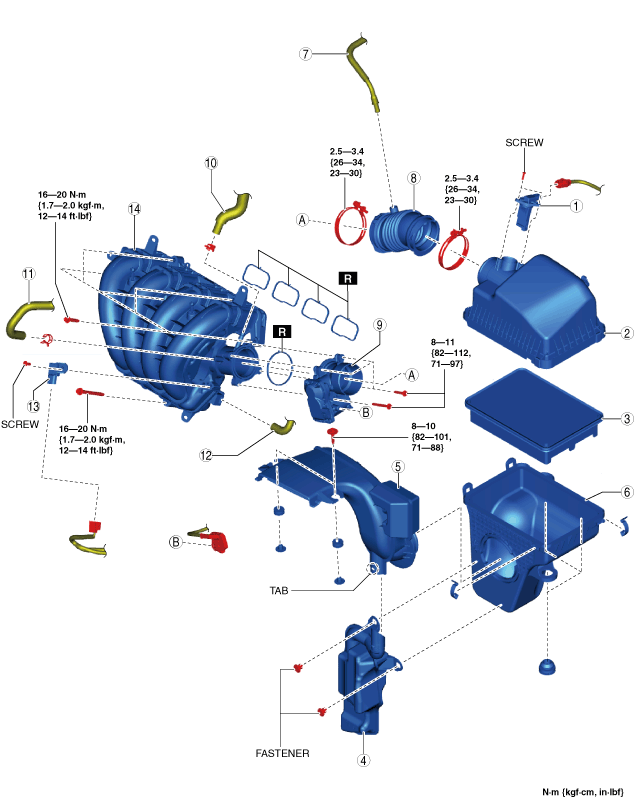

2.  Remove in the order indicated in the table.

3.  Install in the reverse order of removal.

ac30zw00003906

1	MAF sensor/IAT sensor No.1 (See MASS AIR FLOW (MAF) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO.1 REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)
2	Air cleaner cover (See Air Cleaner Cover Installation Note.)
3	Air cleaner element
4	Resonance chamber (See Resonance Chamber Removal Note.)
5	Fresh-air duct (See Fresh-air Duct Removal Note.)
6	Air cleaner case (See Air Cleaner Case Installation Note.)
7	Ventilation hose (See Ventilation Hose Installation Note.)
8	Air hose (See Air Hose Installation Note.)
9	Throttle body
10	Vacuum hose (See VACUUM HOSE REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)
11	Evaporative hose (See Evaporative Hose Installation Note.)
12	PCV hose
13	MAP sensor/IAT sensor No.2 (See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO.2 REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)
14	Intake manifold (See Intake Manifold Removal Note) (See Intake Manifold Installation Note)

Resonance Chamber Removal Note

1.  Remove the following parts as a single unit:

•  Air cleaner case

•  Fresh-air duct

•  Resonance chamber

2.  Remove the resonance chamber.

Fresh-air Duct Removal Note

1.  While moving the tabs in the direction shown in the figure, rotate the fresh air duct.

am3zzw00021175

2.  Remove the fresh-air duct.

Intake Manifold Removal Note

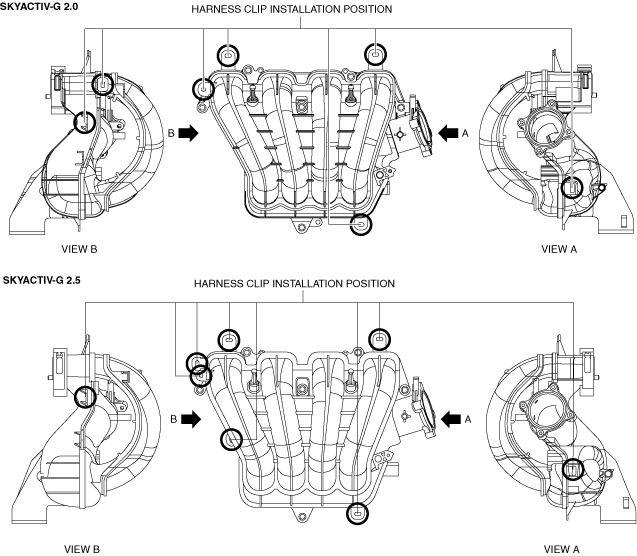

1.  Disconnect the harness clip from the intake manifold as shown in the figure.

ac30zw00003907

2.  Remove the intake manifold.

Intake Manifold Installation Note

1.  Install the intake manifold.

2.  Connect the harness clip to the intake manifold as shown in the figure.

ac30zw00003907

Evaporative Hose Installation Note

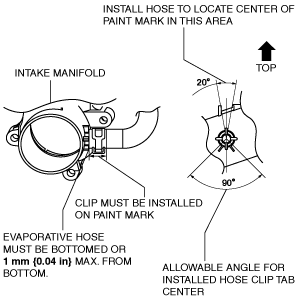

1.  Install the evaporative hose as shown in the figure.

am6xuw00006501

Air Cleaner Case Installation Note

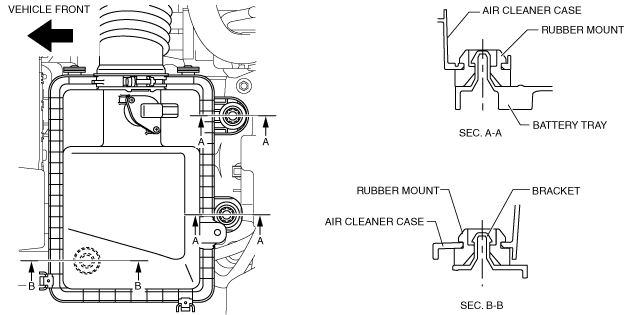

1.  Install the air cleaner case as shown in the figure.

am3zzw00022967

Air Cleaner Cover Installation Note

1.  Install the air cleaner cover as shown in the figure.

ac5wzw00005692

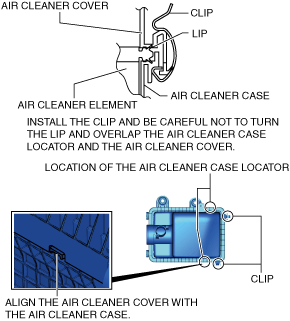

2.  Secure the air cleaner cover and the air cleaner case with the clip.

am3zzw00033016

Air Hose Installation Note

1.  Install the air hose as shown in the figure.

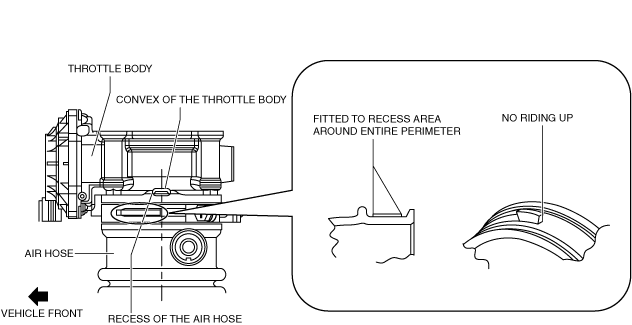

Throttle body side

am3zzw00033007

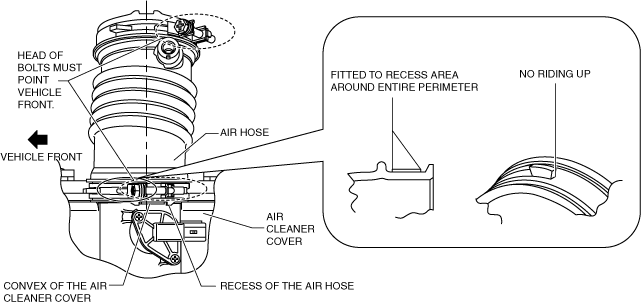

Air cleaner side

am3zzw00033008

Ventilation Hose Installation Note

1.  Install the ventilation hose as shown in the figure.

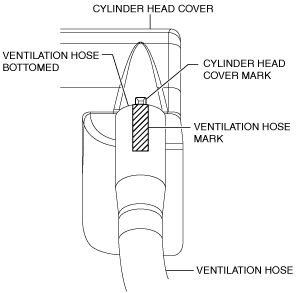

Cylinder head cover side

am6xuw00006506

Air hose side

am6xuw00006507
