AIR CLEANER ELEMENT REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))]
id0113u3800200

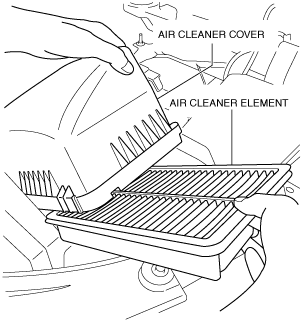

1. Remove the air cleaner element as shown in the figure.
ac5uuw00000360
|
2. Install in the reverse order of removal. (See Air Cleaner Cover Installation Note.)
Air Cleaner Cover Installation Note

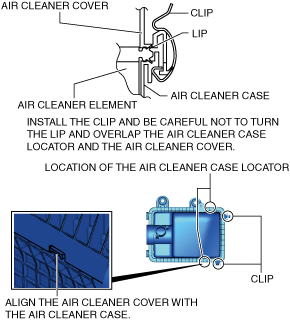

1. Install the air cleaner cover as shown in the figure.
ac5wzw00005692
|
2. Secure the air cleaner cover and the air cleaner case with the clip.
am3zzw00033019
|
