EXHAUST SHUTTER VALVE ACTUATOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8]
id0116q9703400
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

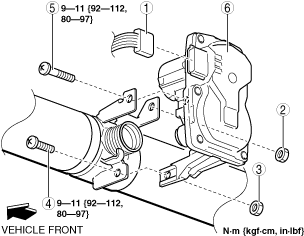

2. Remove using the procedure shown in the figure.
3. Install in the reverse order of removal.
4. Perform the exhaust shutter valve replacement procedure. (See EXHAUST SHUTTER VALVE INITIALIZATION [SKYACTIV-D 1.8].)
am2zzw00015523
|
|
1
|
Connector
|
|
2
|
Nut
|
|
3
|
Nut
|
|
4
|
Bolt
|
|
5
|
Bolt
|
|
6
|
Exhaust shutter valve actuator
|
