PURGE SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))]

Home  id0116u3804300

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)

3.  Remove in the order indicated in the table.

4.  Install in the reverse order of removal.

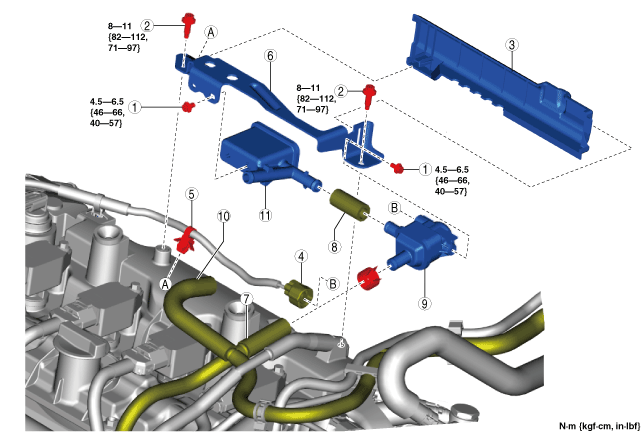

am3zzw00026067

1	Bolt
2	Bolt
3	Insulator (See Insulator Installation Note.)
4	Purge solenoid valve connector
5	Wiring harness clip
6	Bracket
7	Evaporative hose No.1 (See Evaporative Hose No.1 Installation Note.)
8	Evaporative hose No.2 (See Evaporative Hose No.2 Installation Note.)
9	Purge solenoid valve
10	Evaporative hose No.3 (See Evaporative Hose No.3 Installation Note.)
11	Catch tank

Evaporative Hose No.3 Installation Note

1.  Connect the evaporative hose No.3 as shown in the figure.

ac5wzw00010637

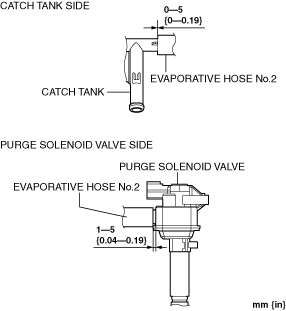

Evaporative Hose No.2 Installation Note

1.  Connect the evaporative hose No.2 as shown in the figure.

ac5wzw00010688

Evaporative Hose No.1 Installation Note

1.  Connect the evaporative hose No.1 as shown in the figure.

ac5wzw00010689

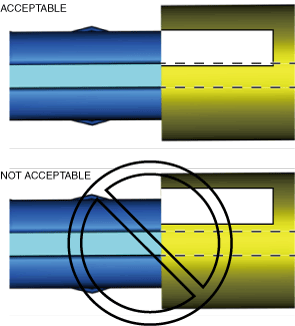

2.  Verify that a portion of the mark on evaporative hose No. 1 is covering the catch tank projection area.

•  If the mark is completely off the projection area, adjust the mark so that it covers the projection area.

ac5uuw00007800

Insulator Installation Note

1.  Install the insulator to the bracket using the following procedure.

(1)  Insert the insulator projection into the bracket.

ac5wzw00010690

(2)  Insert the insulator clip into the bracket.
