QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))]

QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))]

 id0116u3805500

Replacement Part

Retainer

Quantity: 1

Location of use: Quick Release Connector (Type A)

Oil and Chemical Type

Engine oil

Type: Recommended oil

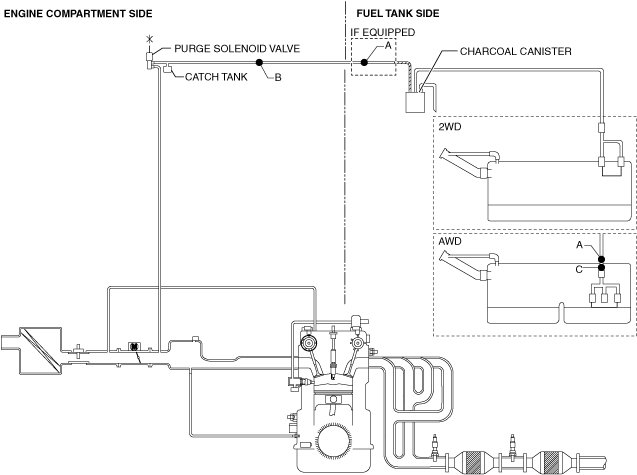

Quick Release Connector Type and Position

Caution
•  Verify the type and location, and install/remove properly.
ac30zw00003718

Type A Removal

Caution
•  Be careful not to damage the evaporative pipe when unlocking the retainer.
Note
•  If the quick release connector is removed, replace the retainer with a new one.

1.  Set the finger parallel to the quick release connector.

am3zzw00032318

Note
•  The quick release connector can be removed by pushing the center of the retainer tabs.
•  The retainer is attached to the evaporative pipe even after the connector is disconnected.

2.  Hold the center of the retainer tabs with the finger and press the retainer.

3.  Pull the connector side and disconnect the quick release connector.

4.  Cover the disconnected quick release connector and evaporative pipe with vinyl sheeting or a similar material to prevent it from getting scratched or dirty.


Type B Removal

1.  Move the retainer upward using a small flathead screwdriver or a similar tool.

am6xuw00001382

2.  Pull out the evaporative hose straight from the evaporative pipe and disconnect it.

3.  Cover the disconnected quick release connector and evaporative pipe with vinyl sheeting or a similar material to prevent it from getting scratched or dirty.


Type C Removal

1.  Set the finger parallel to the quick release connector.

ac30zw00002280

2.  Hold the center of the retainer tabs with the finger and press the retainer.

3.  Pull the connector side and disconnect the quick release connector.

4.  Cover the disconnected quick release connector and evaporative pipe with vinyl sheeting or a similar material to prevent it from getting scratched or dirty.


Type A Installation

Caution
•  Always replace the retainer with a new one when using SST 49 E042 001, otherwise, evaporative leakage could result.
Note
•  If the quick release connector O-ring is damaged or has slipped, replace the piping component.
•  A checker tab is integrated with the quick release connector for new evaporative hoses. Remove the checker tab from the quick release connector after the connector is completely engaged with the evaporative pipe.
am3uuw00005198

1.  Inspect the evaporative hose and evaporative pipe sealing surface for damage and deformation.

•  If there is any malfunction, replace it with a new one.

2.  Apply a small amount of clean engine oil to the sealing surface of the evaporative pipe.

3.  Install a new retainer to the quick release connector.

4.  Reconnect the hose straight to the pipe until a click is heard.

5.  Lightly pull and push the quick release connector a few times by hand, and then verify that it is connected securely.


Type B Installation

Note
•  If the quick release connector O-ring is damaged or has slipped, replace the evaporative hose.
•  A checker tab is integrated with the quick release connector for new evaporative hoses. Remove the checker tab from the quick release connector after the connector is completely engaged with the evaporative pipe.

1.  Inspect the evaporative hose and evaporative pipe sealing surface for damage and deformation.

•  If there is any malfunction, replace it with a new one.

2.  Install the quick release connector.

acmzzw00000142

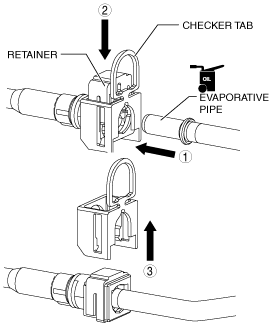

When evaporative hose is exchanged
1.  Insert the evaporative pipe straight to the end of the quick release connector.
2.  Push down the retainer using a finger.
―  If the retainer cannot be pushed down, push the evaporative pipe further to the quick release connector.
3.  Remove the checker tab.
―  Do not use a pliers.
When evaporative hose is not exchanged
1.  Insert the evaporative pipe straight to the end of the quick release connector.
2.  Push down the retainer using a finger.
―  If the retainer cannot be pushed down, push the evaporative pipe further to the quick release connector.

3.  Lightly pull and push the quick release connector a few times by hand, and then verify that it is connected securely.


Type C Installation

Note
•  If the quick release connector O-ring is damaged or has slipped, replace the piping component.

1.  Inspect the evaporative hose and evaporative pipe sealing surface for damage and deformation.

•  If there is any malfunction, replace it with a new one.
aaxjjw00027887

2.  Apply a small amount of clean engine oil to the sealing surface of the evaporative pipe.

3.  Reconnect the hose straight to the pipe until a click is heard.

4.  Lightly pull and push the quick release connector a few times by hand, and then verify that it is connected securely.
