IGNITION COIL REMOVAL/INSTALLATION [SKYACTIV-X 2.0]
id0118hf800200
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)
2. Open the engine cover. (See ENGINE COVER OPEN/CLOSE [SKYACTIV-X 2.0].)
3. Remove the bolts shown in the figure.
am3zzw00035750
|
4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.

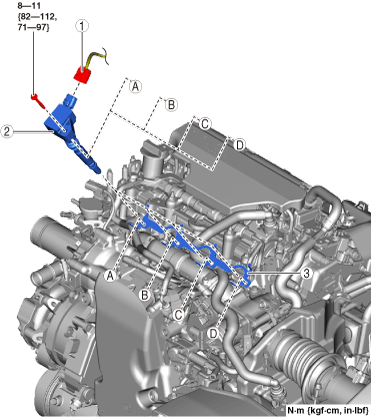

am3zzw00034995
|
|
1
|
Ignition coil connector
|
|
2
|
Ignition coil
|
|
3
|
Ignition coil bracket
|
