DRIVE SELECTION SWITCH REMOVAL/INSTALLATION

DRIVE SELECTION SWITCH REMOVAL/INSTALLATION


 id012100100200

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the selector lever knob. (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

3.  Remove the shift panel. (See SHIFT PANEL REMOVAL/INSTALLATION.)

4.  Remove in the order indicated in the table.

5.  Install in the reverse order of removal.

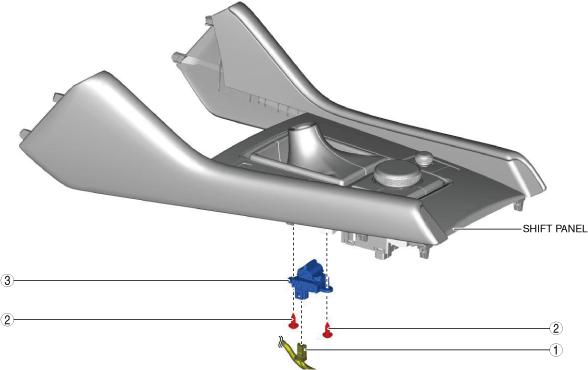

am3zzw00021629

1
Drive selection switch connector
2
Screw
3
Drive selection switch
