ENGINE OIL LEVEL SENSOR REMOVAL/INSTALLATION [SKYACTIV-X 2.0]

Home  id0140hf538100

Replacement part

Caution

•  If the engine oil level sensor is removed, it is necessary to replace it with a new one.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

3.  Drain the engine oil. (See ENGINE OIL REPLACEMENT [SKYACTIV-X 2.0].)

4.  Remove the seal plate.

am3zzw00035609

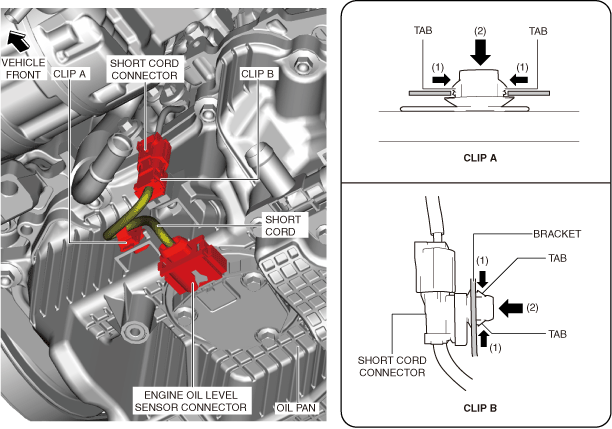

5.  Disconnect the following parts shown in the figure.

am3zzw00035008

•  Engine oil level sensor connector

•  Clip A

•  Clip B

•  Short cord connector

6.  Remove the short cord.

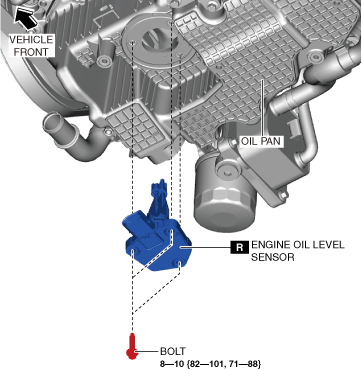

7.  Remove the engine oil level sensor installation bolts shown in the figure.

8.  Remove the engine oil level sensor.

am3zzw00035009

9.  Install in the reverse order of removal.

10.  Add engine oil to the specified level. (See ENGINE OIL REPLACEMENT [SKYACTIV-X 2.0].)

11.  Start the engine and verify that there is no oil leakage.

•  If there is oil leakage, repair or replace the malfunctioning part according to the inspection results.

12.  Inspect the engine oil amount. (See ENGINE OIL LEVEL INSPECTION [SKYACTIV-X 2.0].)
