1A^*1

CAN_2H

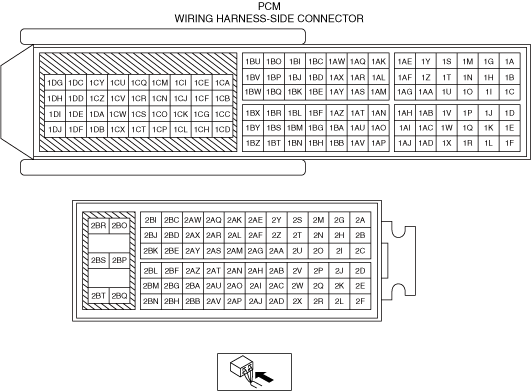

CAN system related modules

1B^*1

CAN_2L

CAN system related modules

1C

Constant voltage (Vref)

Cylinder pressure sensor No.1, cylinder pressure sensor No.2, cylinder pressure sensor No.3, cylinder pressure sensor No.4

1D

Constant voltage (Vref)

Refrigerant pressure sensor No.2, MAP sensor, IAT sensor No.2, refrigerant pressure sensor No.2, swirl control valve position sensor

1E

Constant voltage (Vref)

CKP sensor, revolution sensor^*2

1F

CKP

CKP sensor

1G

GND

Cylinder pressure sensor No.1, cylinder pressure sensor No.2, cylinder pressure sensor No.3, cylinder pressure sensor No.4

1H

Swirl control valve position

Swirl control valve position sensor

1I

Constant voltage (Vref)

EGR pressure sensor, neutral sensor No.1^*2, water pressure sensor, GPF pressure sensor

1J

Constant voltage (Vref)

High fuel pressure sensor, high fuel temperature sensor, engine oil temperature sensor, engine oil pressure sensor, boost pressure sensor, boost air temperature sensor

1K

Constant voltage (Vref)

Neutral sensor No.2, EGR valve, EGR valve position sensor, air bypass valve, air bypass valve position sensor, low fuel pressure sensor, low fuel temperature sensor

1L

Constant voltage (Vref)

TP sensor No.1, TP sensor No.2

1M

A/F

A/F sensor

1N

GND

Sensor shield

1O

TP (No.1)

TP sensor No.1

1P

Aair bypass valve position

Air bypass valve position sensor

1Q

IAT (No.2)

IAT sensor No.2

1R

GND

TP sensor No.1, TP sensor No.2

1S

A/F

A/F sensor

1T

A/F

A/F sensor

1U

GND

Sensor shield

1V

TP (No.2)

TP sensor No.2

1W

High fuel temperature

High fuel temperature sensor

1X

MAP

MAP sensor

1Y

Cylinder pressure (No.1)

Cylinder pressure sensor No.1

1Z

Cylinder pressure (No.2)

Cylinder pressure sensor No.2

1AA

Low fuel temperature

Low fuel temperature sensor

1AB

GND

Engine oil level sensor, ECT sensor No.1, ECT sensor No.2, engine oil temperature sensor, boost pressure sensor, boost air temperature sensor, engine oil temperature sensor, engine oil pressure sensor, high fuel pressure sensor, high fuel temperature sensor

1AC

Boost pressure

Boost pressure sensor

1AD

Intake electric variable valve timing control (diagnostic)

Intake Electric variable valve timing motor/driver

1AE

Cylinder pressure (No.3)

Cylinder pressure sensor No.3

1AF

Cylinder pressure (No.4)

Cylinder pressure sensor No.4

1AG

—

—

1AH

ECT (No.1)

ECT sensor No.1

1AI

GND

Intake CMP sensor, exhaust CMP sensor

1AJ

EGR valve position

EGR valve position sensor

1AK

EGR pressure

EGR pressure sensor

1AL

Water pressure

Water pressure sensor

1AM

ECT (No.2)

ECT sensor No.2

1AN

Engine oil temperature

Engine oil temperature sensor

1AO

GND

Sensor shield

1AP

GND

CKP sensor, revolution sensor^*2

1AQ

GPF pressure

GPF pressure sensor

1AR

Refrigerant pressure (No.2)

Refrigerant pressure sensor No.2

1AS

Engine oil pressure

Engine oil pressure sensor

1AT

GND

Neutral sensor No.2, EGR valve, EGR valve position sensor, air bypass valve, air bypass valve position sensor, low fuel pressure sensor, low fuel temperature sensor

1AU

High fuel pressure

High fuel pressure sensor

1AV

Boost air temperature

Boost air temperature sensor

1AW

—

—

1AX

GND

Purge solenoid valve

1AY^*1

INH

TCM, BCM

1AZ^*2

Back up light

Back up light switch

1BA

ECT (No.3)

ECT sensor No.3

1BB

—

—

1BC

IGT1

Ignition coil No.1

1BD

Electric water pump control

Electric water pump

1BE

Neutral position (No.1)

Neutral sensor No.1^*2

1BF

Exhaust electric variable valve timing control (diagnostic)

Exhaust electric variable valve timing motor/driver

1BG

Exhaust electric variable valve timing control (rotation direction) (rotation pulse)

Exhaust electric variable valve timing motor/driver

1BH

Exhaust electric variable valve timing control (rotation direction)

Exhaust electric variable valve timing motor/driver

1BI

IGT2

Ignition coil No.2

1BJ

Electric thermostat control

Electric thermostat

1BK

Neutral position (No.2)

Neutral sensor No.2^*2

1BL

Low fuel pressure

Low fuel pressure sensor

1BM

Intake electric variable valve timing control (rotation direction) (rotation pulse)

Intake electric variable valve timing motor/driver

1BN

Intake electric variable valve timing control (rotation direction)

Intake electric variable valve timing motor/driver

1BO

IGT3

Ignition coil No.3

1BP

—

—

1BQ

Exhaust shutter valve position

Exhaust shutter valve position sensor

1BR

GND

Refrigerant pressure sensor No.2, MAP sensor, IAT sensor No.2, refrigerant pressure sensor No.2, supercharger speed sensor, swirl control valve position sensor

1BS

Supercharger speed

Supercharger speed sensor

1BT

Intake CMP

Intake CMP sensor

1BU

IGT4

Ignition coil No.4

1BV

Intake electric variable valve timing control

Intake electric variable valve timing motor/driver

1BW

Exhaust electric variable valve timing control

Exhaust electric variable valve timing motor/driver

1BX

GND

EGR pressure sensor, neutral sensor No.1^*2, water pressure sensor, GPF pressure sensor

1BY

Revolution

Revolution sensor

1BZ

Exhaust CMP

Exhaust CMP sensor

1CA

Supercharger clutch control

Supercharger clutch

1CB

A/F sensor heater control

A/F sensor heater

1CC

Exhaust shutter valve (+)

Exhaust shutter valve

1CD

Exhaust shutter valve (–)

Exhaust shutter valve

1CE

Aair bypass valve control (+)

Air bypass valve

1CF

Aair bypass valve control (–)

Air bypass valve

1CG

Compressor valve control

Compressor valve

1CH

Coolant switching valve contorl

Coolant switching valve (CSV)

1CI

Swirl control valve control (+)

Swirl control valve

1CJ

Swirl control valve control (–)

Swirl control valve

1CK

Engine oil control

Engine oil solenoid valve

1CL

—

—

1CM

EGR valve control (+)

EGR valve

1CN

EGR valve control (–)

EGR valve

1CO

Purge control

Purge solenoid valve

1CP

—

—

1CQ

Drive-by-wire control (+)

Throttle valve actuator

1CR

Drive-by-wire control (–)

Throttle valve actuator

1CS

—

—

1CT

—

—

1CU

Fuel injection control (+)

Fuel injector No.3

1CV

Fuel injection control (–)

Fuel injector No.3

1CW

Injector power supply

Injector relay

1CX

Injector power supply

Injector relay

1CY

Fuel injection control (+)

Fuel injector No.2

1CZ

Fuel injection control (–)

Fuel injector No.2

1DA

Injector power supply

Injector relay

1DB

Injector power supply

Injector relay

1DC

Fuel injection control (+)

Fuel injector No.4

1DD

Fuel injection control (–)

Fuel injector No.4

1DE

Injector power supply

Injector relay

1DF

Injector power supply

Injector relay

1DG

Fuel injection control (+)

Fuel injector No.1

1DH

Fuel injection control (–)

Fuel injector No.1

1DI

High pressure fuel pump control (+)

High pressure fuel pump

1DJ

High pressure fuel pump control (–)

High pressure fuel pump

2A

Battery voltage

Battery

2B

Main relay control

Main relay

2C

—

—

2D

Fuel pump control

Fuel pump control module

2E

—

—

2F

Ignition (IG1)

IG1 relay No.1

2G

—

—

2H

Starter cut-off control

Starter relay

2I

Fan control

Fan control module

2J

—

—

2K

—

—

2L

—

—

2M

CAN_3H

CAN system related modules

2N

CAN_3L

CAN system related modules

2O

—

—

2P

Brake (No.2)

Brake switch (No.2 signal)

2Q

—

—

2R

Ambient temperature

Ambient temperature sensor

2S

CAN_H

CAN system related modules

2T

CAN_L

CAN system related modules

2U

—

—

2V

—

—

2W

—

—

2X

—

—

2Y

LIN

Fresh-air duct valve actuator^*3, active air shutter, engine oil level sensor

2Z

—

—

2AA

—

—

2AB

—

—

2AC

GND

MAF sensor, IAT sensor No.1

2AD

—

—

2AE

—

—

2AF

A/C cut-off control

A/C relay

2AG

—

—

2AH

—

—

2AI

GND

Refrigerant pressure sensor No.1, ambient temperature sensor, clutch stroke sensor^*2, exhaust shutter valve position sensor

2AJ

—

—

2AK

—

—

2AL

—

—

2AM

Cooling fan control

Cooling fan relay

2AN

—

—

2AO

Constant voltage (Vref)

APP sensor No.2

2AP^*2

Clutch stroke sensor

Clutch stroke sensor

2AQ

—

—

2AR

—

—

2AS

—

—

2AT

Constant voltage (Vref)

MAF sensor, IAT sensor No.1

2AU

Constant voltage (Vref)

Exhaust shutter valve position sensor

2AV

Refrigerant pressure (No.1)

Refrigerant pressure sensor No.1

2AW

Fuel pump control

Fuel pump relay

2AX

Fuel pump control module (diagnostic)

Fuel pump control module

2AY

—

—

2AZ

Constant voltage (Vref)

Refrigerant pressure sensor No.1, clutch stroke sensor^*2

2BA

Constant voltage (Vref)

APP sensor No.1

2BB

APP (No.2)

APP sensor No.2

2BC

—

—

2BD

—

—

2BE

Intake air, mass air flow

MAF sensor, IAT sensor No.1

2BF

—

—

2BG

GND

APP sensor No.2

2BH

GND

APP sensor No.1

2BI

—

—

2BJ

HO2S heater control

HO2S heater

2BK

HO2S (+)

HO2S

2BL

HO2S (–)

HO2S

2BM

GND

Sensor shield

2BN

APP (No.1)

APP sensor No.1

2BO

Main power supply

Main relay

2BP

GND

GND

2BQ

GND

GND

2BR

Main power supply

Main relay

2BS

GND

GND

2BT

GND

GND
