CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8]

id0140s1110200

Replacement Part

O-ring

Quantity: 1

Location of use: CMP sensor

Oil and Chemical Type

Engine oil

Type: Recommended oil

Caution

• When replacing the CMP sensor, make sure there is no foreign matter on it such as metal shavings. If it is installed with foreign matter, the sensor output signal will malfunction resulting from fluctuation in magnetic flux and cause a deterioration in engine control.

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2. Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

3. Disconnect the CMP sensor connector.

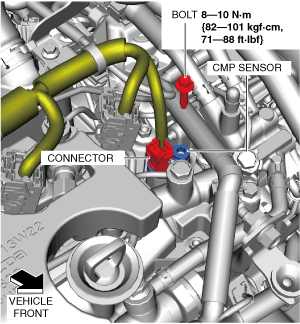

am3zzw00031139

4. Remove the bolt.

5. Remove the CMP sensor.

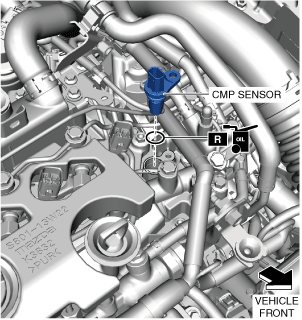

am3zzw00031140

6. Install in the reverse order of removal.
