BOOST AIR TEMPERATURE SENSOR INSPECTION [SKYACTIV-D 1.8]

Home  id0140s1736800

Note

•  Because the boost air temperature sensor is integrated with the MAP sensor, replacing the boost air temperature sensor includes replacement of the MAP sensor/boost air temperature sensor. (See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR/BOOST AIR TEMPERATURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

Resistance Inspection

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the MAP sensor/boost air temperature sensor. (See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR/BOOST AIR TEMPERATURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

3.  Measure the resistance between MAP sensor/boost air temperature sensor terminals A and B.

atsvuw00000025

•  If not as specified, replace the MAP sensor/boost air temperature sensor. (See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR/BOOST AIR TEMPERATURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

Resistance

CACT11 (°C {°F})	Resistance (Kilohms)
0	Approx. 5.8
20 {68}	Approx. 2.5
80 {176}	Approx. 0.323

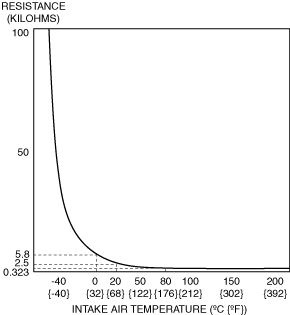

Specification (Reference)

atsvuw00000014
