INTAKE AIR TEMPERATURE (IAT) SENSOR NO.2 REMOVAL/INSTALLATION [SKYACTIV-D 1.8]

INTAKE AIR TEMPERATURE (IAT) SENSOR NO.2 REMOVAL/INSTALLATION [SKYACTIV-D 1.8]


 id0140s1806300

Replacement Part

O-ring

Quantity: 1

Location of use: IAT sensor No.2

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Disconnect the IAT sensor No.2 connector.

ac3wzw00004834

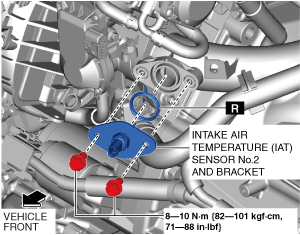

3.  Remove the IAT sensor No.2 and bracket as single unit.

ac3wzw00004835

4.  Install in the reverse order of removal.
