MASS AIR FLOW (MAF) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO.1 REMOVAL/INSTALLATION [SKYACTIV-D 1.8]

MASS AIR FLOW (MAF) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO.1 REMOVAL/INSTALLATION [SKYACTIV-D 1.8]

 id0140s1900300

Note
•  Because the IAT sensor No.1 is integrated in the MAF sensor, replacing the IAT sensor No.1 includes replacement of the MAF sensor/IAT sensor No.1.
•  If the MAF sensor/IAT sensor No.1 is replaced, perform the Operation After Replacing MAF Sensor/IAT Sensor No.1 procedure. (See Operation After Replacing MAF Sensor/IAT Sensor No.1.)

Operation After Replacing MAF Sensor/IAT Sensor No.1

1.  MAF sensor/IAT sensor No.1 is replaced, perform the following procedure.

Step

Action

Page
1
Perform the “MASS AIR FLOW (MAF) SENSOR DATA RESET” procedure.
(See MASS AIR FLOW (MAF) SENSOR DATA RESET [SKYACTIV-D 1.8].)
2
Switch the ignition off.
—
3
Wait for 30 s.
—
4
Switch the ignition ON (engine off).
—
5
Perform the KOEO self test procedure.
(See DTC INSPECTION.)
6
Start the engine.
—
7
Verify that the check engine light does not illuminate.
—
8
Perform the KOER self test procedure.
(See DTC INSPECTION.)
9
Clear the DTCs.
(See CLEARING DTC.)


MAF Sensor/IAT Sensor No.1 Removal/Installation

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Disconnect the MAF sensor/IAT sensor No.1 connector.

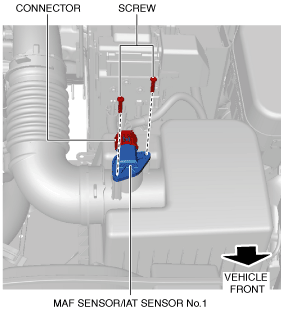

ac3wzw00001340

3.  Remove the screws.

4.  Remove the MAF sensor/IAT sensor No.1.

5.  Install in the reverse order of removal.

6.  Perform the Operation After Replacing MAF Sensor/IAT Sensor No.1. (See Operation After Replacing MAF Sensor/IAT Sensor No.1.)
