• High temperature exhaust gas is emitted during diesel particulate filter regeneration. People near the vehicle could be seriously burned, or flammable objects could catch fire. Always perform the compulsory diesel particulate filter regeneration away from people and flammable objects.
• If large amounts of exhaust gas are inhaled, it may cause carbon monoxide poisoning. Always perform compulsory DPF regeneration in a well-ventilated place (avoid using an exhaust air duct indoors and perform compulsory DPF regeneration in the open air).
Caution
• Perform compulsory DPF regeneration with the bonnet opened to prevent engine compartment overheating.
• If an electrical load is applied, the post injection amount of the fuel injection control changes and compulsory DPF regeneration cannot be performed normally. Do not apply an electrical load such as turning on the headlights or the rear window defroster during compulsory DPF regeneration (A/C cut control is performed during compulsory DPF regeneration, and A/C is stopped).
• If there are obstructions such as a wall around the tailpipe, it will obstruct the exhaust gas passage (airflow), and compulsory DPF regeneration may not be performed correctly due to the increase in exhaust gas temperature. Always perform compulsory DPF regeneration with no obstructions around tailpipe.
• The temperature in the trunk compartment increases because high temperature exhaust gas is emitted during DPF regeneration. If an object which can be easily damaged by heat is in the trunk compartment such as an electronic device, it could be damaged by the temperature increase. If compulsory DPF regeneration is performed, do not place objects such as electronic devices which can be easily damaged by heat in the trunk compartment.
• If any DTC other than P2458:00, P2463:00, and P242F:00 is stored, the PCM may inhibit compulsory DPF regeneration. Before performing compulsory DPF regeneration, resolve the malfunction and clear the DTC.
Note
• To perform compulsory DPF regeneration, the implementation conditions for compulsory DPF regeneration must be met. Compulsory DPF regeneration will not be performed without the implementation conditions met.
• Normal and long modes are available for compulsory DPF regeneration. The PCM calculates the amount of accumulated particulate matter (PM), automatically selects normal mode (approx. 28 min) or long mode (approx. 60 min) according to the amount, and then DPF regeneration is performed.
• The PCM automatically selects normal mode or long mode, however, normal mode and long mode are not performed continuously. If compulsory DPF regeneration is performed once and the PM combustion elimination is not completed, it is necessary to perform the compulsory DPF regeneration procedure again.
—: Not applicable
Item
Diesel particulate filter accumulation amount
PM accumulation amount
0—8.0 g/L
{0—0.50 lb/ft3}
8.0—10.0 g/L
{0.50—0.62 lb/ft3}
10.0—13.0 g/L
{0.62—0.81 lb/ft3}
13.0—17.0 g/L
{0.81—1.06 lb/ft3}
17.0 g/L {1.06 lb/ft3} or more
Diesel particulate filter indicator light
—
Illuminated (Informs user)
Flashing (Warns user)
Displays the message “PM Accumulation in DPF” in the center display.*1
(Informs user)
Displays the message “DPF Error” in the center display.*2
(Warns user)
Check engine light
—
—
—
Illuminated*3
(Warns user)
Output restriction
—
—
Gas temperature restriction
Gas temperature restriction and soot emission amount restriction
DTC recorded in PCM
—
—
P2458:00
P2463:00
P242F:00
Automatic DPF regeneration control range
Automatic DPF regeneration control operable
(If the accumulated PM amount exceeds the specified value*4, automatic DPF regeneration control is implemented, and operates until the accumulated PM amount is approx. 0 g/L {0 lb/ft3}.)
Automatic DPF regeneration control inoperable
(Automatic DPF regeneration control is disabled when amount of accumulated PM is 10.0 g/L {0.62 lb/ft3} or more because output is restricted.)
User action
—
Warm up the engine completely (engine coolant temperature 80 °C {176 °F} or more), depress the accelerator pedal and maintain a vehicle speed of 20 km/h {12 mph} or more for 15—20 min.
Bring vehicle to a Mazda dealer.
Mazda dealer action
—
—
Compulsory DPF regeneration*5
Diesel particulate filter replacement
*1 :Turns off when PM accumulation amount is 5.0 g/L {0.31 lb/ft3} or less.
*2 :The diesel particulate filter indicator light flashes when the amount of accumulated PM is 10.0 g/L {0.62 lb/ft3} or more. This indicates that amount of accumulated PM in the diesel particulate filter is full. Therefore, to reduce the amount of accumulated PM, the fuel injection amount is reduced and exhaust gas temperature restriction (output restriction) is performed. As a result, soot generation is reduced and the PM accumulating in the diesel particulate filter is reduced. Turns off when it is 5.0 g/L {0.31 lb/ft3} or less.
*3 :The check engine light illuminates when the amount of accumulated PM reaches 13.0 g/L {0.81 lb/ft3} or more. In this case, to further restrict soot generation (output restriction), exhaust gas is induced to the cylinder by EGR control to lower the combustion temperature. As a result, soot generation is further reduced, and the PM accumulating in the diesel particulate filter is reduced.
*4 :Figure fluctuates depending on distance travelled/conditions.
*5 :The PCM automatically selects normal mode or long mode for the compulsory DPF regeneration operation time according to the accumulated PM amount. If compulsory DPF regeneration is performed when the amount of accumulated PM is less than 10.0 g/L {0.62 lb/ft3}, normal mode is performed. If compulsory DPF regeneration is performed when the amount of accumulated PM is 10.0 g/L {0.62 lb/ft3} or more, long mode is performed.
• Compulsory diesel particulate filter regeneration is completed.
Compulsory Diesel Particulate Filter Regeneration Performed Using Test Terminal
Caution
• Perform compulsory diesel particulate filter regeneration with the bonnet opened to prevent engine compartment overheating.
Note
• The following conditions occur by grounding the test terminal.
― DTC P1905:00 is detected.
― [Vehicle system inspection] is displayed on the multi-information display.
• DTC P1905:00 is automatically erased by disconnecting the test terminal ground.
• DTC P1905:00 is erased and [Vehicle system inspection] displayed on the multi-information display is also erased at the same time.
1. Open the bonnet.
2. Start the engine.

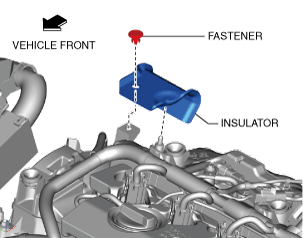

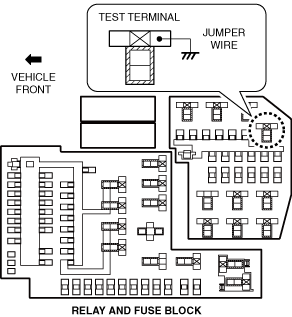

3. Short the connection between body ground and test terminal using a jumper wire.
am3zzw00031167
4. Repeatedly depress and release the accelerator pedal two times.
Note
• If diesel particulate filter regeneration initiates, the engine speed increases.
5. Verify that the engine speed increases.
― If the engine speed does not increase, return to procedure 1.
Note
• If the diesel particulate filter regeneration is completed correctly, the engine speed decreases to the normal idle speed.
6. After the engine speed increases, wait until the engine speed decreases to the normal idle speed.
7. Detach the jumper wire from the test terminal.
8. Switch the ignition off.
9. Start the engine.
10. Verify that the messages, “Soot Accumulation in DPF too high” and “DPF Inspection Required” are displayed in the TFT LCD in the instrument cluster.
