AIR FUEL RATIO (A/F) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))]

AIR FUEL RATIO (A/F) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))]

 id0140u3899700

Special Service Tool (SST)

49 L018 001

O2 sensor wrench

Warning
•  A hot engine and exhaust system can cause severe burns. Turn off the engine and wait until they are cool before removing the exhaust system.
Caution
•  Do not allow flammable objects such as the taping for bundling a wiring harness to come into contact with the exhaust manifold and silencer.

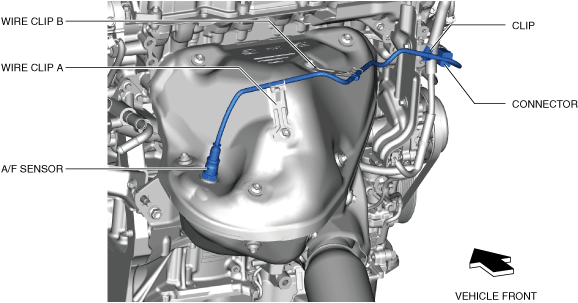

am3zzw00030519

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Disconnect the A/F sensor connector.

3.  Remove the clip from the heat insulator.

ac5uuw00003055

4.  Remove the wiring harness from the wire clip A and B. (See Assembly of Wiring Harness to Wire Clip Note.)

ac5uuw00003056

5.  Remove the A/F sensor using the SST.

am3zzw00030520

6.  Install in the reverse order of removal.


Assembly of Wiring Harness to Wire Clip Note

•  Secure the heat shrinkable tube on the wiring harness to wire clip A.
ac5uuw00003561
•  Secure the wiring harness to wire clip B so that the band on the wiring harness is positioned to the position shown in the figure.
ac5ccw00000072
