FRONT WHEEL ALIGNMENT [(E)]

FRONT WHEEL ALIGNMENT [(E)]

 id0211008002x2

Front wheel alignment (Unloaded)*1 (Except Chinese specs.)

Item

Fuel gauge indication

Empty

1/4

1/2

3/4

Full
Maximum steering angle
[Tolerance ±3°]
Inner
38°48′
Outer
31°36′
Total toe-in
Tire
[Tolerance ±4 {0.16}]
(mm {in})
1.0 {0.04}
Rim inner
[Tolerance]
16 inch wheel: ±2.5 {0.10}
18 inch wheel: ±2.8 {0.12}
Vehicle equipped with 16 inch wheel: 0.6 {0.02}
Vehicle equipped with 18 inch wheel: 0.8 {0.03}
(degree)
0°05′±0°20′
Caster angle*2 (Reference value)
[Tolerance ±1°]
4°11′
4°13′
4°14′
4°16′
4°17′
Camber angle*2 (Reference value)
[Tolerance ±1°]
-0°21′
-0°21′
-0°21′
-0°21′
-0°22′
Steering axis inclination (Reference value)
12°35′
12°35′
12°36′
12°36′
12°37′

*1  :Engine coolant and engine oil are at specified level. Spare tire, jack and tools are in designated position.
*2  :Difference between left and right must not exceed 1°00′.

Front wheel alignment (Unloaded)*1 (Chinese specs.)

Item

Fuel gauge indication

Empty

1/4

1/2

3/4

Full
Maximum steering angle
[Tolerance ±3°]
Inner
38°48′
Outer
31°36′
Total toe-in
Tire
[Tolerance ±4 {0.16}]
(mm {in})
1.0 {0.04}
Rim inner
[Tolerance]
16 inch wheel: ±2.4 {0.09}
18 inch wheel: ±2.7 {0.11}
Vehicle equipped with 16 inch wheel: 0.6 {0.02}
Vehicle equipped with 18 inch wheel: 0.8 {0.03}
(degree)
0°05′±0°20′
Caster angle*2 (Reference value)
[Tolerance ±1°]
4°11′
4°13′
4°14′
4°16′
4°17′
Camber angle*2 (Reference value)
[Tolerance ±1°]
-0°21′
-0°21′
-0°21′
-0°21′
-0°22′
Steering axis inclination (Reference value)
12°35′
12°35′
12°36′
12°36′
12°37′

*1  :Engine coolant and engine oil are at specified level. Spare tire, jack and tools are in designated position.
*2  :Difference between left and right must not exceed 1°00′.

Steering Angle Adjustment

1.  Loosen the tie-rod end locknuts.

2.  Remove the steering gear boot clamp.

3.  Turn the tie rods.

am3zzw00027959

Standard length L
5.1—18.1 mm {0.20—0.71 in}

4.  Turn the tie rods equally to provide the correct maximum steering angle.

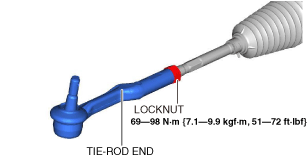

5.  Tighten the tie-rod end locknuts.

am3zzw00031424

6.  Verify that the boot is not twisted, and install the boot clamp.

7.  Adjust the toe-in after adjusting the steering angle. (See Total Toe-in Adjustment.)


Total Toe-in Adjustment

1.  Loosen the locknut of the tie-rod end.

2.  Remove the rack boot clamp.

3.  Adjust the total toe-in by rotating each tie rod (left and right) in the opposite directions by the same amount respectively.

Note
•  Toe angle changes by approx. 4 mm {0.2 in} per one rotation of the tie rod for one wheel.
•  Each tie rod has a right-hand thread. When increasing the toe-in angle, rotate the right tie rod toward the front of the vehicle and rotate the left tie rod toward the rear of the vehicle by the same amount.

4.  Tighten the locknut of the tie-rod end.

5.  Verify that the rack boot does not have any twisting and install the rack boot clamp.


Side Slip Inspection (Indonesia/ Singapore)

1.  Inspect the side slip using a side slip tester.

Standard
In 2±5 mm {In 0.08±0.2 in}
•  If not within the standard, inspect the front wheel alignment and adjust it if necessary.
