WHEEL HUB COMPONENT REMOVAL/INSTALLATION [2WD (E)]

Home  id0312008004x5

Replacement part

Warning

•  If the vehicle is driven without ending maintenance mode, it could result in an accident. After performing the maintenance mode work, always end maintenance mode.

Caution

•  When performing the procedure while the vehicle is on the ground, block the front and rear wheels using wheel blocks. Otherwise, the vehicle may move when the electric parking brake is released.

•  Performing the following procedures could cause an open circuit in the rear ABS wheel-speed sensor wiring harness if it is pulled by mistake. Before servicing, disconnect the rear ABS wheel-speed sensor and set it aside so that the wiring harness will not be pulled by mistake.

1.  Switch to the maintenance mode. (See MAINTENANCE MODE [(E)].)

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

3.  Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

4.  Disconnect the electric parking brake motor gear unit connector. (See ELECTRIC PARKING BRAKE MOTOR GEAR UNIT REMOVAL/INSTALLATION.)

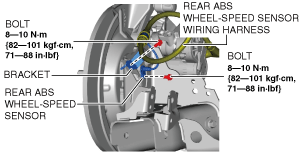

5.  Remove the rear ABS wheel-speed sensor and the bracket from the wheel hub component.

ac30zw00000454

6.  Disconnect the rear ABS wheel-speed sensor wiring harness and set it aside so that it does not interfere with the servicing.

7.  Remove the rear brake caliper component and suspend it out of the way using a cable. (See REAR BRAKE DISC REMOVAL/INSTALLATION [(E)].)

8.  Remove in the order indicated in the table.

9.  Install in the reverse order of removal.

10.  End the maintenance mode. (See MAINTENANCE MODE [(E)].)

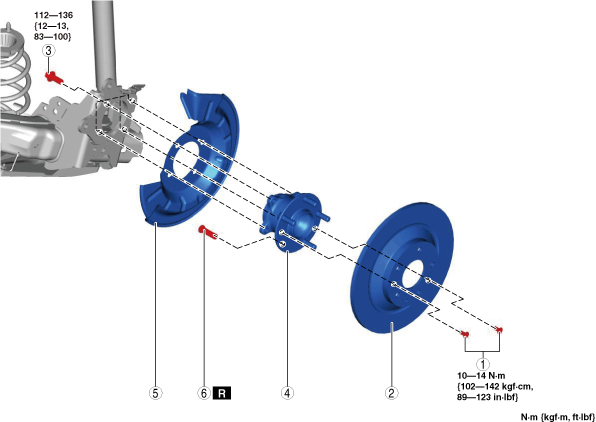

ac30zw00000456

1	Screw
2	Rear Disc plate
3	Bolt (wheel hub component)
4	Wheel hub component (See Wheel Hub Component Installation Note.)
5	Dust cover
6	Rear wheel hub bolt (See Rear wheel Hub Bolt Removal Note.) (See Rear wheel Hub Bolt Installation Note.)

Rear wheel Hub Bolt Removal Note

Note

•  Remove the rear wheel hub bolt only if there is any malfunction.

1.  Remove the rear wheel hub bolt from the wheel hub component using a press.

ac5jjw00003216

Rear wheel Hub Bolt Installation Note

1.  Press in new rear wheel hub bolt into the wheel hub component using a press.

ac5jjw00003849

Wheel Hub Component Installation Note

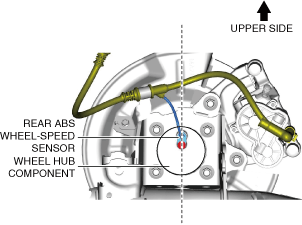

1.  Install the wheel hub component with the rear ABS wheel-speed sensor toward the upper side.

ac30zw00000457
