FRONT BRAKE DISC PAD REMOVAL/INSTALLATION [(E)]

Home  id041100000299

Replacement Part

Oil and Chemical Type

Warning

•  If the vehicle is driven without ending maintenance mode, it could result in an accident. After performing the maintenance mode work, always end maintenance mode.

Note

•  When transitioning to maintenance mode, the electronically controlled brake unit and the electric parking brake functions stop.

•  When transitioning to maintenance mode, the clearance between the rear disc pads and the rear disc plates expands.

•  When the maintenance mode is completed, perform the electric parking brake automatic adjustment.

•  With the electric parking brake automatic adjustment, the electric parking brake motor gear unit operation time is longer than normal.

1.  Switch to the maintenance mode. (See MAINTENANCE MODE [(E)].)

2.  Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

3.  Remove in the order indicated in the table.

4.  Install in the reverse order of removal.

5.  End the maintenance mode. (See MAINTENANCE MODE [(E)].)

6.  After installation, depress the brake pedal a few times, rotate the wheel by hand, and verify that the brake does not drag.

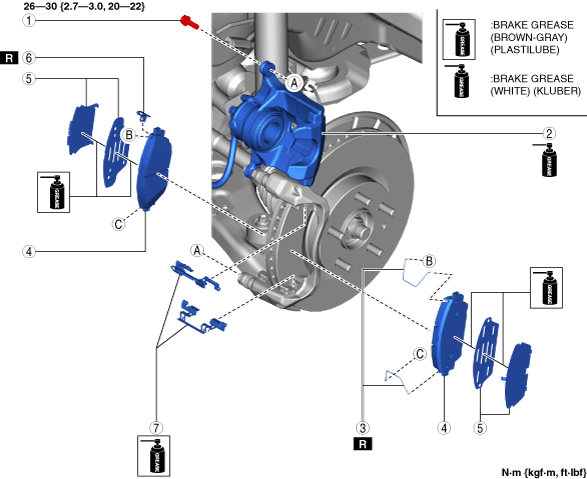

ac30zw00000948

1	Bolt
2	Front brake caliper (See Front Brake Caliper Installation Note.)
3	Spring
4	Disc pad
5	Shim
6	Wear indicator
7	Guide plate (See Guide Plate Installation Note.)

Guide Plate Installation Note

Caution

•  When assembling the guide plates to the front brake mounting support, securely assemble them on the leading side and trailing side to each position shown in the figure. If the guide plates are assembled to the incorrect positions, it could become a source of noise.

1.  Install the guide plate as shown in the figure.

ac30zw00000100

2.  Apply grease to the locations shown in the figure.

ac30zw00000101

Front Brake Caliper Installation Note

1.  Clean the exposed area of the piston.

2.  Push the piston in using the commercially available disc brake expand tool.

ac30zw00000102

3.  Apply grease to the locations shown in the figure.

ac30zw00000103

4.  Install the disc pads to the front brake mounting support.

5.  Return the front brake caliper to the original position and install the bolt.
