BRAKE FLUID INSPECTION [(E)]

BRAKE FLUID INSPECTION [(E)]

 id041100815299

Oil and Chemical Type

Brake fluid type [Without Mazda M Hybrid]

Type: SAE J1703 or FMVSS116 DOT-3 or DOT-4
Brake fluid type [With Mazda M Hybrid]

Type: Mazda Genuine Brake Fluid or equivalent

Caution
•  Brake fluid will damage painted surfaces. Be careful not to spill any on painted surfaces. In addition, if there is any brake fluid on the wiring harness, the wire insulation may corrode causing a malfunction such as a short circuit. If brake fluid gets on a painted surface or wiring harness, wash and flush it off completely with water immediately.

1.  Verify that the brake fluid level in the brake fluid reserve tank is between the MAX and MIN marks.

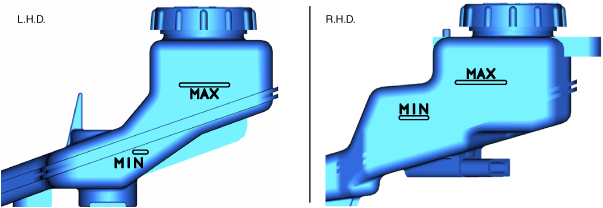

Without Mazda Mazda M Hybrid

ac30zw00004630

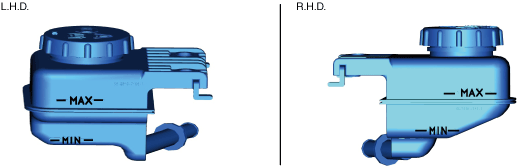

With Mazda M Hybrid

am3zzw00030721
•  If the brake fluid is less than MIN, verify the following and if there is no abnormality, add brake fluid.
―  Brake fluid leakage
―  Condition and wear of disc pads

Brake fluid type
SAE J1703 or FMVSS116 DOT-3 or DOT-4 (Without Mazda M Hybrid)
Mazda Genuine Brake Fluid or equivalent (With Mazda M Hybrid)
