CLUTCH PEDAL REMOVAL/INSTALLATION [C66M-R]

id0510ma156700

Caution

• Do not allow clutch fluid to get on a painted surface. Clutch fluid contains properties which can dissolve the paint. If clutch fluid gets on a painted surface, rinse with water immediately, then wipe the area dry.

1. Disconnect the negative battery terminal.

2. Remove the following parts as a single unit.

• Air cleaner cover

• Air cleaner element

• Fresh-air duct

• Air cleaner case

• Air hose

• Resonance chamber

3. Remove the battery.

4. Remove the battery tray and PCM component as a single unit.

5. Disconnect the clutch stroke sensor connector.

am3zzw00022320

6. Remove the bracket from the steering shaft.

7. Disconnect the starter interlock switch connector. (See STARTER INTERLOCK SWITCH REMOVAL/INSTALLATION [C66M-R].)

8. Remove the joint cover.

9. Disconnect the clutch pipe No.1 from clutch master cylinder, and plug it to avoid clutch fluid leakage. (See CLUTCH PIPE AND HOSE REMOVAL/INSTALLATION [C66M-R].)

10. Disconnect the clutch reserve hose from clutch master cylinder, and plug it to avoid clutch fluid leakage. (See CLUTCH PIPE AND HOSE REMOVAL/INSTALLATION [C66M-R].)

11. Remove the nuts.

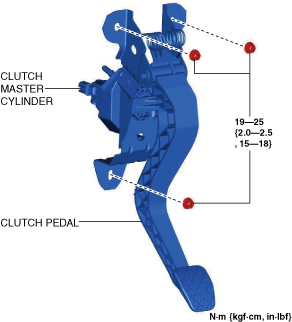

ac30zw00003372

12. Remove the clutch pedal and the clutch master cylinder as a single unit.

13. Remove the starter interlock switch. (See STARTER INTERLOCK SWITCH REMOVAL/INSTALLATION [C66M-R].)

Caution

• When removing the insulator, completely detach the insulator tabs so as not to damage them. If the tabs are not completely detached, they may be damaged when the insulator is removed.

14. Remove the insulator. (See Insulator Installation Note.)

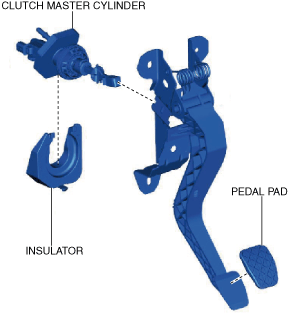

ac30zw00003373

15. Remove the clutch master cylinder. (See CLUTCH MASTER CYLINDER REMOVAL/INSTALLATION [C66M-R].)

16. Remove the pedal pad.

17. Install in the reverse order of removal.

18. Bleed the air from the clutch system. (See CLUTCH FLUID REPLACEMENT/AIR BLEEDING [C66M-R].)

19. Inspect the clutch pedal. (See CLUTCH PEDAL INSPECTION [C66M-R].)

20. Fully depress the clutch pedal, and verify that the engine starts.

Insulator Installation Note

1. Move the insulator in the direction of arrow (1) shown in the figure and hook the insulator tabs onto the clutch pedal.

am3zzw00021712

2. Press the insulator in the direction of arrow (2) shown in the figure and install the insulator.

3. Verify that the insulator is securely installed.
