STARTER INTERLOCK SWITCH REMOVAL/INSTALLATION [C66M-R, C66MX-R]
id0510mc160100
Replacement Part
|
Starter interlock switch
Quantity: 1
Location of use: Clutch pedal
|
Removal
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

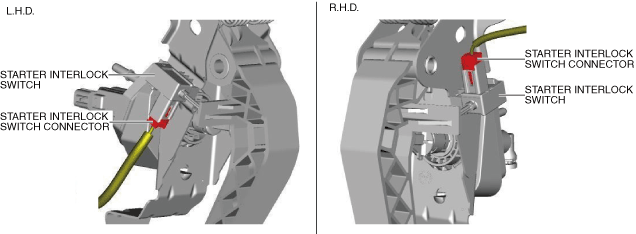

2. Disconnect the starter interlock switch connector.
ac30zw00000591
|

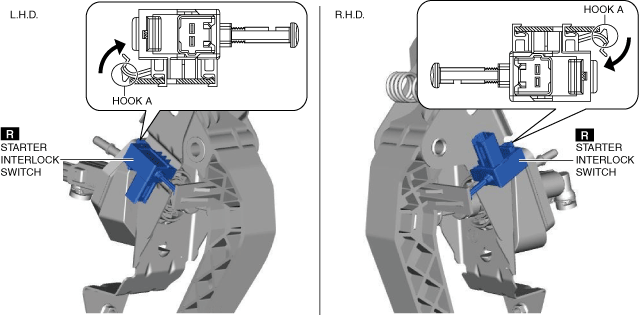

3. Detach hook A in the direction of the arrow shown in the figure.
ac30zw00000592
|

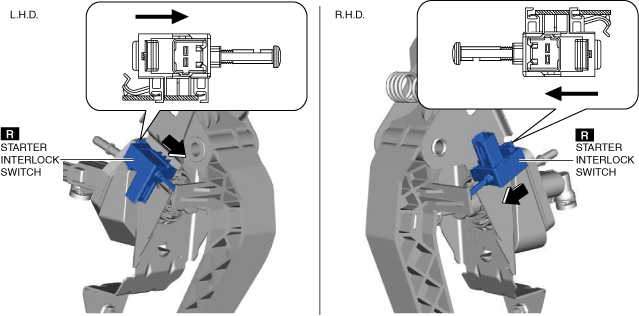

4. Slide the starter interlock switch in the direction of the arrow shown in the figure.
ac30zw00000593
|

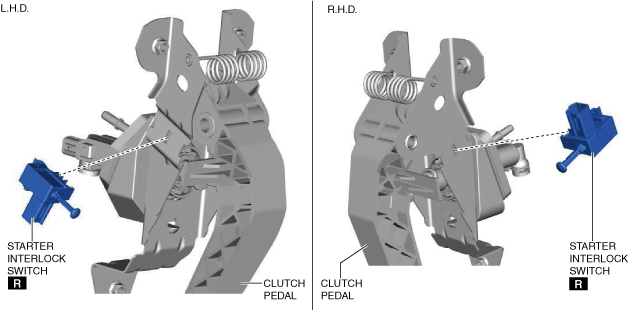

5. Remove the starter interlock switch from the clutch pedal.
ac30zw00000594
|
Installation

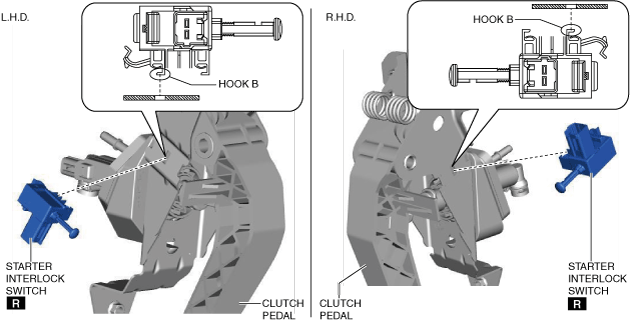

1. Insert hook B of a new starter interlock switch into the clutch pedal hole.
ac30zw00000595
|

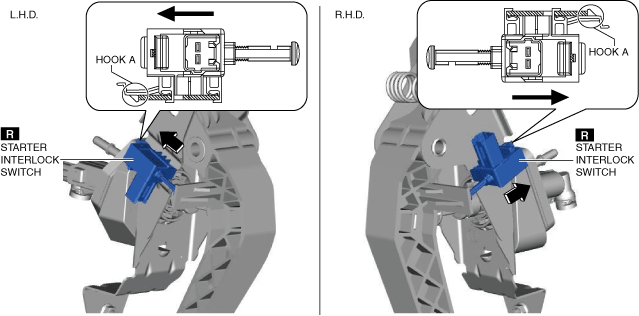

2. While pressing the starter interlock switch against the clutch pedal, slide the starter interlock switch until hook A is locked in the direction of the arrow shown in the figure.
ac30zw00000596
|

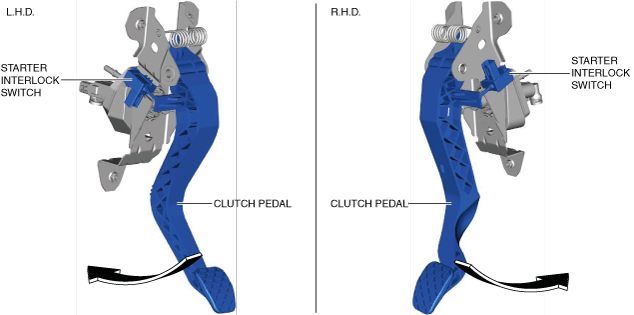

3. Fully depress the clutch pedal in the direction of arrow, and verify that a click sound from the starter interlock switch is heard.
ac30zw00000597
|
4. Connect the starter interlock switch connector.
ac30zw00000591
|
5. Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)
6. Fully depress the clutch pedal, and verify that the engine starts.
