MANUAL TRANSAXLE OIL REPLACEMENT [C66M-R, C66MX-R]

MANUAL TRANSAXLE OIL REPLACEMENT [C66M-R, C66MX-R]

 id0515ma159700

Replacement Part

Gasket

Quantity: 1

Location of use: Drain plug
Gasket

Quantity: 1

Location of use: Oil level plug

Oil and Chemical Type

Manual transaxle oil

Type: MAZDA LONG LIFE GEAR OIL G7

1.  Park the vehicle on level ground.

2.  Remove the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

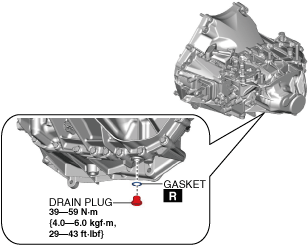

3.  Remove the drain plug and gasket, and drain the manual transaxle oil.

am3zzw00021659

4.  Install a new gasket and the drain plug.

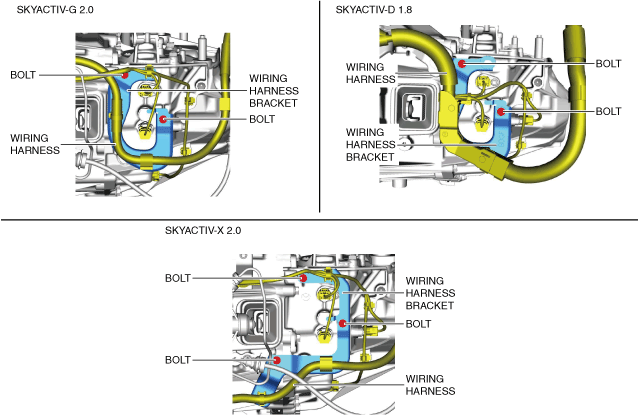

5.  Remove the bolts and set the wiring harness and wiring harness bracket in a place which does not interfere with servicing.

ac30zw00000600

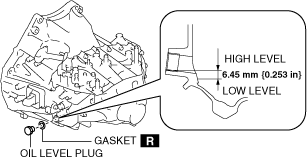

6.  Remove the oil level plug and gasket.

am3zzw00022323

7.  Add the specified manual transaxle oil through the oil level plug port.

Specified manual transaxle oil

Engine type

Manual transaxle oil capacity (approx. quantity)
MAZDA LONG LIFE GEAR OIL G7*1
SKYACTIV-G 2.0
1.70 L {1.80 US qt, 1.50 Imp qt}
SKYACTIV-X 2.0, SKYACTIV-D 1.8
2WD:1.65 L {1.74 US qt, 1.45 Imp qt} AWD:1.70 L {1.80 US qt, 1.50 Imp qt}

*1  :Mazda Long Life Gear Oil G7 is superior oil for low fuel cost and optimum shift-feel. Using Mazda Long Life Gear Oil G7 is recommended. If Mazda Long Life Gear Oil G7 cannot be obtained, use standard oil (API Service GL-4 (SAE 75W-80)).

8.  Install a new gasket and the oil level plug.

am3zzw00031496

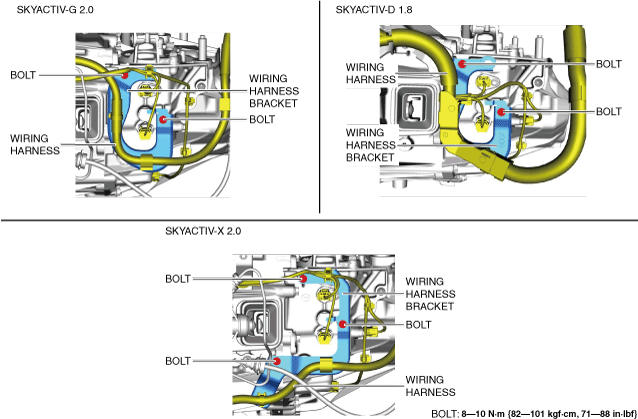

9.  Connect the wiring harness bracket to the manual transaxle.

ac30zw00000601

10.  Install the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)
