STEERING SHIFT SWITCH REMOVAL/INSTALLATION [ET6A-EL, ET6AX-EL]

Home  id0517n3112500

1.  Disconnect the negative battery terminal.(See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

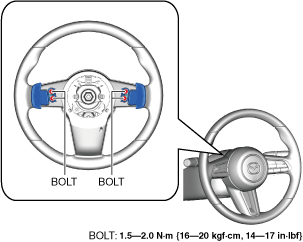

2.  Remove the bolts.

am3zzw00030673

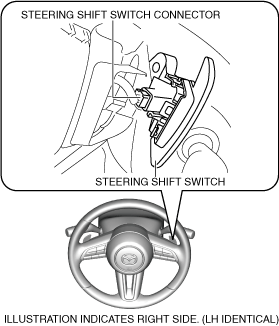

3.  Pull out the steering shift switch from the steering wheel until the steering shift switch connector is visible.

ac30zw00004179

4.  Disconnect the steering shift switch connector.

5.  Remove the steering shift switch.

ac30zw00004180

6.  Install in the reverse order of removal.
