BLOWER UNIT DISASSEMBLY/ASSEMBLY [(E)]

BLOWER UNIT DISASSEMBLY/ASSEMBLY [(E)]

 id0711008006x2


L.H.D. (Except Chinese specs.)

Caution
•  Apply only the specified grease to the link. Otherwise abnormal noise or improper operation may result.

1.  Disassemble in the order indicated in the table.

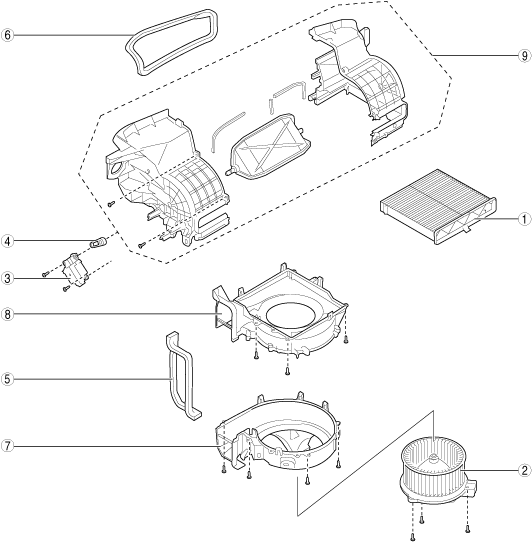

ac30zw00001856

1
Air filter
2
Blower motor
3
Air intake actuator
4
Air intake link
5
Polyurethane (1)
6
Polyurethane (2)
7
Blower case (2)
8
Blower case (1)
9
Blower case assembly

2.  Assemble in the reverse order of disassembly.


R.H.D.

Caution
•  Apply only the specified grease to the link. Otherwise abnormal noise or improper operation may result.

1.  Disassemble in the order indicated in the table.

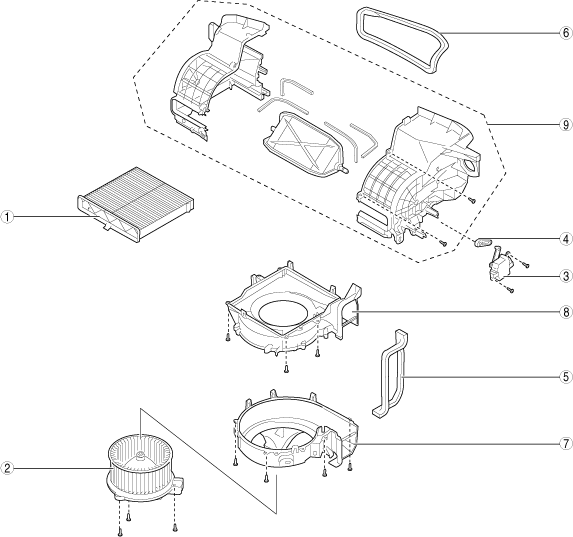

ac30zw00001857

1
Air filter
2
Blower motor
3
Air intake actuator
4
Air intake link
5
Polyurethane (1)
6
Polyurethane (2)
7
Blower case (2)
8
Blower case (1)
9
Blower case assembly

2.  Assemble in the reverse order of disassembly.


L.H.D. (Chinese Specs.)

Caution
•  Apply only the specified grease to the link. Otherwise abnormal noise or improper operation may result.

1.  Disassemble in the order indicated in the table.

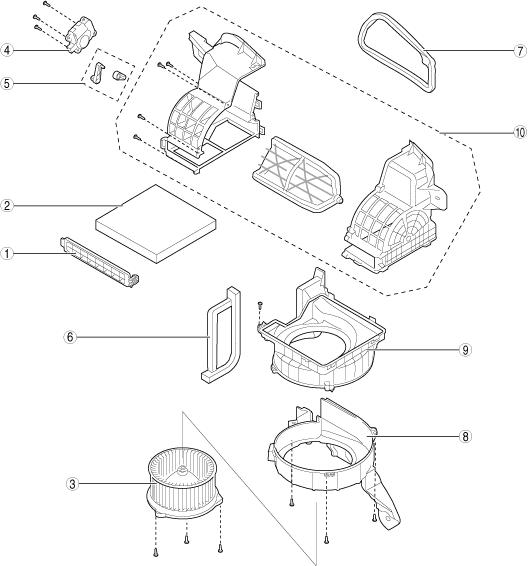

ac30zw00004074

1
Cover
2
Air filter
3
Blower motor
4
Air intake actuator
5
Air intake link
6
Polyurethane (1)
7
Polyurethane (2)
8
Blower case (2)
9
Blower case (1)
10
Blower case assembly

2.  Assemble in the reverse order of disassembly.
