AMBIENT TEMPERATURE SENSOR INSPECTION [MANUAL AIR CONDITIONER]

AMBIENT TEMPERATURE SENSOR INSPECTION [MANUAL AIR CONDITIONER]

 id0740a2803300

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the ambient temperature sensor. (See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)

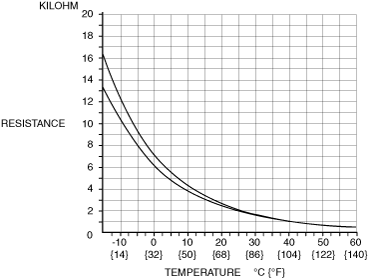

3.  Measure the temperature around the ambient temperature sensor and measure the resistance between the ambient temperature sensor terminals A and B.

ac30zw00001638
ac30zw00001639

•  If the characteristics of the ambient temperature sensor are not as shown in the graph, replace the ambient temperature sensor. (See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)
