CLOCK SPRING ADJUSTMENT [TWO-STEP DEPLOYMENT CONTROL SYSTEM]
CLOCK SPRING ADJUSTMENT [TWO-STEP DEPLOYMENT CONTROL SYSTEM]
id0810b1802100
-
Caution
-
• The clock spring will break if over-wound. Do not forcibly turn the clock spring.
-
Note
-
• Adjust the clock spring with the front tires in a straight-ahead condition.
• The SRS air bag system can be identified by whether or not the seat track position sensor is present.
-
― Standard deployment control system: Without seat track position sensor
― Two-step deployment control system: With seat track position sensor

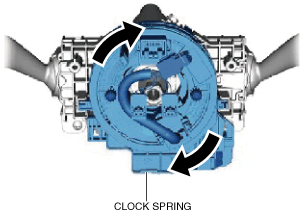

1. Turn the clock spring clockwise until it stops.

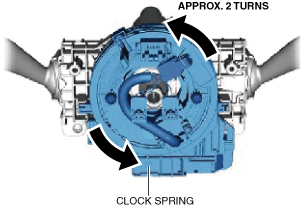

2. From the stopped position, turn the clock spring counterclockwise approx. 2 turns.
3. Verify that the guide is visible in the viewing slot.
-
Note
-
• A different color guide appears only when the clock spring adjustment is completed.
