DTC U2633:14 [BODY CONTROL MODULE (BCM)]

id0902r7115100

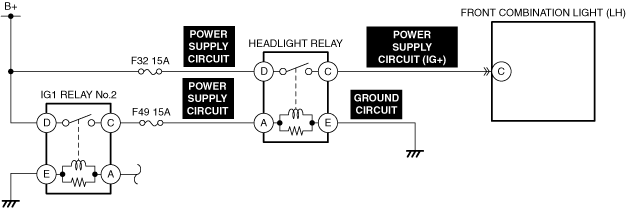

Outline

System malfunction location

Light control module (LH) power supply circuit (IG+) malfunction

Detection condition

•  The light control module (LH) (built into front combination light (LH)) detects an open circuit in the power supply circuit (IG+).

Fail-safe

Not applicable

Possible cause

•  IG1 relay No.2 malfunction and headlight relay malfunction

•  Open circuit in following circuits:

―  Headlight relay ground circuit

―  Headlight relay power supply circuit

―  Power supply circuit between IG1 relay No.2 and headlight relay

•  Short to ground in power supply circuit between IG1 relay No.2 and headlight relay

•  Front combination light (LH) connector or terminal malfunction

•  Open circuit in front combination light (LH) power supply circuit (IG+)

•  Front combination light (LH) internal malfunction

•  Body control module (BCM) malfunction

System malfunction location	Light control module (LH) power supply circuit (IG+) malfunction
Detection condition	• The light control module (LH) (built into front combination light (LH)) detects an open circuit in the power supply circuit (IG+).
Fail-safe	Not applicable
Possible cause	• IG1 relay No.2 malfunction and headlight relay malfunction • Open circuit in following circuits: ― Headlight relay ground circuit ― Headlight relay power supply circuit ― Power supply circuit between IG1 relay No.2 and headlight relay • Short to ground in power supply circuit between IG1 relay No.2 and headlight relay • Front combination light (LH) connector or terminal malfunction • Open circuit in front combination light (LH) power supply circuit (IG+) • Front combination light (LH) internal malfunction • Body control module (BCM) malfunction

Diagnostic Procedure

Step

Inspection

Results

Action

1

VERIFY BODY CONTROL MODULE (BCM) DTCs AGAIN

•  Clear the DTC recorded in the memory.
(See CLEARING DTC.)

•  Perform the DTC inspection for the body control module (BCM).
(See DTC INSPECTION.)

•  Is the same Pending DTC present?

Yes

Go to the next step.

No

Go to repair completion verification 2.

2

INSPECT IG1 RELAY No.2 AND HEADLIGHT RELAY FOR MALFUNCTION

•  Inspect the applicable part.
(See RELAY INSPECTION.)

•  Is the part normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

(See RELAY LOCATION [(E)].)

3

INSPECT HEADLIGHT RELAY GROUND CIRCUIT, HEADLIGHT RELAY POWER SUPPLY CIRCUIT, AND POWER SUPPLY CIRCUIT BETWEEN IG1 RELAY No.2 AND HEADLIGHT RELAY FOR OPEN CIRCUIT

•  Inspect the applicable circuit for an open circuit.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

4

INSPECT POWER SUPPLY CIRCUIT BETWEEN IG1 RELAY No.2 AND HEADLIGHT RELAY FOR SHORT TO GROUND

•  Inspect the applicable circuit for a short to ground.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

5

INSPECT FRONT COMBINATION LIGHT (LH) CONNECTOR FOR MALFUNCTION

•  Inspect the applicable connector and terminal.
(See CONNECTOR INSPECTION.)

•  Are the connector and terminal normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

6

INSPECT FRONT COMBINATION LIGHT (LH) POWER SUPPLY CIRCUIT (IG+) FOR OPEN CIRCUIT

•  Inspect the applicable circuit for an open circuit.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

7

INSPECT FRONT COMBINATION LIGHT (LH) FOR MALFUNCTION DEPENDING ON REPEATABILITY

•  Install/connect the part removed/disconnected during the troubleshooting procedure.

•  Clear the DTC recorded in the memory.
(See CLEARING DTC.)

•  Perform the DTC inspection for the body control module (BCM).
(See DTC INSPECTION.)

•  Is the same Pending DTC present?

Yes

Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.

(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].)

If the CAN communication is normal, replace the malfunctioning location and perform the repair completion verification.

(See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)

No

Go to repair completion verification 2.

Repair completion verification 1

VERIFY THAT VEHICLE IS REPAIRED

•  Install/connect the part removed/disconnected during the troubleshooting procedure.

•  Clear the DTC recorded in the memory.
(See CLEARING DTC.)

•  Perform the DTC inspection for the body control module (BCM).
(See DTC INSPECTION.)

•  Is the same Pending DTC present?

Yes

Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.

(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].)

If the CAN communication is normal, perform the diagnosis from Step 1.

•  If the malfunction recurs, replace the body control module (BCM), then go to the next step.
(See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION [(E)].)

No

Go to the next step.

Repair completion verification 2

VERIFY IF OTHER DTC IS DISPLAYED

•  Perform the DTC inspection.
(See DTC INSPECTION.)

•  Are any other DTCs displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

No

DTC troubleshooting completed.

Step	Inspection	Results	Action
1	VERIFY BODY CONTROL MODULE (BCM) DTCs AGAIN • Clear the DTC recorded in the memory. (See CLEARING DTC.) • Perform the DTC inspection for the body control module (BCM). (See DTC INSPECTION.) • Is the same Pending DTC present?	Yes	Go to the next step.
1		No	Go to repair completion verification 2.
2	INSPECT IG1 RELAY No.2 AND HEADLIGHT RELAY FOR MALFUNCTION • Inspect the applicable part. (See RELAY INSPECTION.) • Is the part normal?	Yes	Go to the next step.
2		No	Repair or replace the malfunctioning location and perform the repair completion verification. (See RELAY LOCATION [(E)].)
3	INSPECT HEADLIGHT RELAY GROUND CIRCUIT, HEADLIGHT RELAY POWER SUPPLY CIRCUIT, AND POWER SUPPLY CIRCUIT BETWEEN IG1 RELAY No.2 AND HEADLIGHT RELAY FOR OPEN CIRCUIT • Inspect the applicable circuit for an open circuit. (See CIRCUIT INSPECTION.) • Is the circuit normal?	Yes	Go to the next step.
3		No	Repair or replace the malfunctioning location and perform the repair completion verification.
4	INSPECT POWER SUPPLY CIRCUIT BETWEEN IG1 RELAY No.2 AND HEADLIGHT RELAY FOR SHORT TO GROUND • Inspect the applicable circuit for a short to ground. (See CIRCUIT INSPECTION.) • Is the circuit normal?	Yes	Go to the next step.
4		No	Repair or replace the malfunctioning location and perform the repair completion verification.
5	INSPECT FRONT COMBINATION LIGHT (LH) CONNECTOR FOR MALFUNCTION • Inspect the applicable connector and terminal. (See CONNECTOR INSPECTION.) • Are the connector and terminal normal?	Yes	Go to the next step.
5		No	Repair or replace the malfunctioning location and perform the repair completion verification.
6	INSPECT FRONT COMBINATION LIGHT (LH) POWER SUPPLY CIRCUIT (IG+) FOR OPEN CIRCUIT • Inspect the applicable circuit for an open circuit. (See CIRCUIT INSPECTION.) • Is the circuit normal?	Yes	Go to the next step.
6		No	Repair or replace the malfunctioning location and perform the repair completion verification.
7	INSPECT FRONT COMBINATION LIGHT (LH) FOR MALFUNCTION DEPENDING ON REPEATABILITY • Install/connect the part removed/disconnected during the troubleshooting procedure. • Clear the DTC recorded in the memory. (See CLEARING DTC.) • Perform the DTC inspection for the body control module (BCM). (See DTC INSPECTION.) • Is the same Pending DTC present?	Yes	Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].) If the CAN communication is normal, replace the malfunctioning location and perform the repair completion verification. (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)
7		No	Go to repair completion verification 2.
Repair completion verification 1	VERIFY THAT VEHICLE IS REPAIRED • Install/connect the part removed/disconnected during the troubleshooting procedure. • Clear the DTC recorded in the memory. (See CLEARING DTC.) • Perform the DTC inspection for the body control module (BCM). (See DTC INSPECTION.) • Is the same Pending DTC present?	Yes	Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].) If the CAN communication is normal, perform the diagnosis from Step 1. • If the malfunction recurs, replace the body control module (BCM), then go to the next step. (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION [(E)].)
Repair completion verification 1		No	Go to the next step.
Repair completion verification 2	VERIFY IF OTHER DTC IS DISPLAYED • Perform the DTC inspection. (See DTC INSPECTION.) • Are any other DTCs displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting.
Repair completion verification 2		No	DTC troubleshooting completed.
