FRONT OVER FENDER REMOVAL/INSTALLATION

FRONT OVER FENDER REMOVAL/INSTALLATION

 id091000878700

1.  Remove the fasteners.

ac30zw00001114

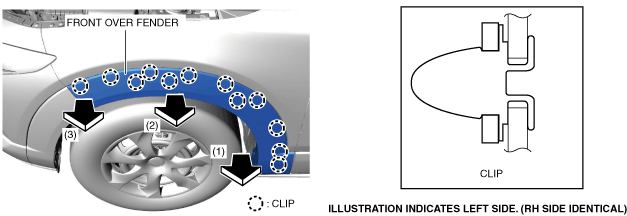

2.  While pulling the front over fender and detaching the clips in the order of arrows (1), (2), and (3) shown in the figure, remove the front over fender.

ac30zw00001115

3.  Remove the clips remaining on the vehicle body and install them to the front over fender.

4.  Install in the reverse order of removal.

Warning
•  When installing the front over fender, verify that clips are not damaged, if they are damaged, replace them with new ones. Otherwise, the front over fender may fall off while the vehicle is being driven, leading to a serious accident.
