REAR OVER FENDER REMOVAL/INSTALLATION

REAR OVER FENDER REMOVAL/INSTALLATION

 id091000878800

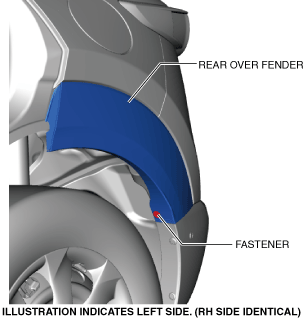

1.  Remove the fastener.

ac30zw00001116

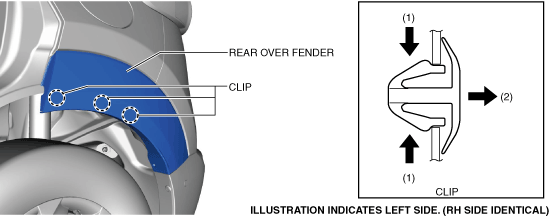

2.  While pressing the clip tabs in the directions of arrows (1) shown in the figure and moving the rear over fender in the direction of arrow (2), detach the clips from the rear over fender bracket.

ac30zw00001117

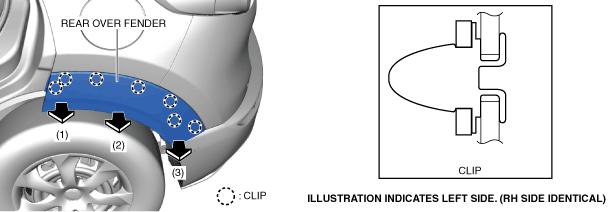

3.  While pulling the rear over fender and detaching the clips in the order of arrows (1), (2), and (3) shown in the figure, remove the rear over fender.

ac30zw00001118

4.  Remove the clips remaining on the vehicle body and install them to the rear over fender.

5.  Install in the reverse order of removal.

Warning
•  When installing the rear over fender, verify that clips are not damaged, if they are damaged, replace them with new ones. Otherwise, the rear over fender may fall off while the vehicle is being driven, leading to a serious accident.
