POWER LIFTGATE (PLG) FULLY OPEN POSITION CHANGE

Home  id091100044100

Note

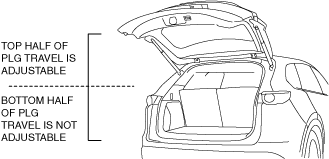

•  Adjustment can only be performed at the top half of PLG opening.

ac5wzw00011957

1.  Stop the PLG to any position at half-open or more.

2.  Press the PLG rear switch for approx. 3 s.

3.  Verify that the PLG buzzer is activated two times.
