REAR POWER WINDOW MOTOR INSPECTION

Home  id091200001900

Note

•   The rear power window motor is integrated with the rear power window regulator.

LH

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Disconnect the power window motor connector. (See REAR POWER WINDOW REGULATOR REMOVAL/INSTALLATION.)

3.  Apply battery positive voltage and connect the ground to power window motor terminals A and F, and then inspect the power window motor operation.

B+ Terminal	Ground Terminal	Operation
A	F	Close
F	A	Open

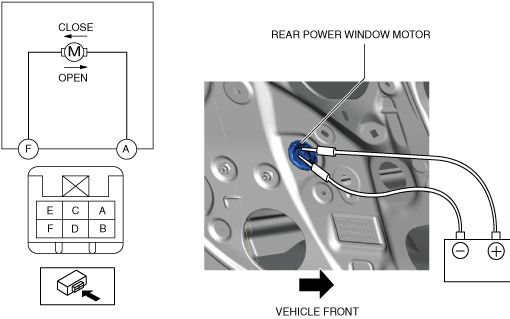

ac30zw00005328

•   If the power window motor does not operate as indicated in the table, replace it. (See REAR POWER WINDOW REGULATOR REMOVAL/INSTALLATION.)

RH

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Disconnect the power window motor connector. (See REAR POWER WINDOW REGULATOR REMOVAL/INSTALLATION.)

3.  Apply battery positive voltage and connect the ground to power window motor terminals B and E, and then inspect the power window motor operation.

B+ Terminal	Ground Terminal	Operation
B	E	Close
E	B	Open

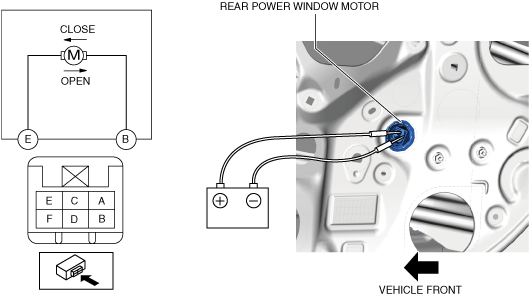

ac30zw00002191

•   If the power window motor does not operate as indicated in the table, replace it. (See REAR POWER WINDOW REGULATOR REMOVAL/INSTALLATION.)
