POWER WINDOW SUBSWITCH INSPECTION

POWER WINDOW SUBSWITCH INSPECTION

id091200002300

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the power window sub switch. (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION.)

3.  Verify that the resistance between power window sub switch terminals B and D is as indicated in the table.

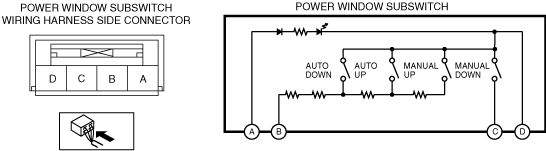

am3zzw00027187

Switch Position

Resistance (ohm)

Terminal
Auto Down
445.5—454.5
B—D
Auto Up
683.1—696.9
Manual Up
1069.2—1090.8

•  If not as indicated in the table, replace the power window subswitch. (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION.)

4.  Verify that the continuity between the power window subswitch terminals C and D is as indicated in the table.

Switch Position

Continuity Terminal
Manual Down
C—D

•  If not as indicated in the table, replace the power window subswitch. (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION.)


Power Window Subswitch Illumination Inspection

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the power window sub switch. (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION.)

3.  Apply battery positive voltage to power window subswitch terminal A, and connect terminal D to ground.

am3zzw00027187

B+ Terminal

Ground Terminal

Operation
A
D
LED Turn On

4.  Verify that the LED is turned on.

•   If the LED does not turn on, replace the power window subswitch. (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION.)
