REAR SEAT CUSHION REMOVAL/INSTALLATION

id091300912600

Caution

•  When performing the procedure with a rear seat cushion removed from the vehicle, perform the procedure on a clean cloth so as not to damage or dirty the seat.

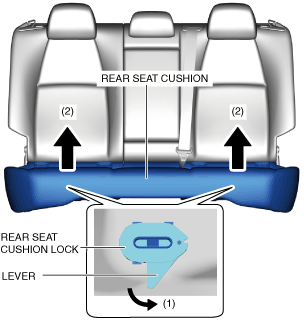

1.  While moving the rear seat cushion lock levers in the direction of arrow (1) shown in the figure, lift up the rear seat cushion in the direction of arrows (2) and detach the rear seat cushion lock from the rear seat cushion.

ac30zw00002736

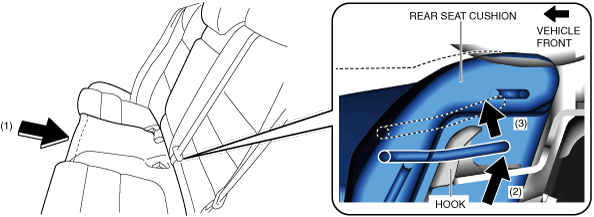

2.  While pressing the rear seat cushion in the direction of arrow (1) shown in the figure, lift up the rear seat cushion in the direction of arrow (2), move it in the direction of arrow (3), and detach it from the hook.

ac30zw00002737

3.  Remove the rear seat cushion.

4.  Install in the reverse order of removal. (See Rear Seat Cushion Installation Note.)

Rear Seat Cushion Installation Note

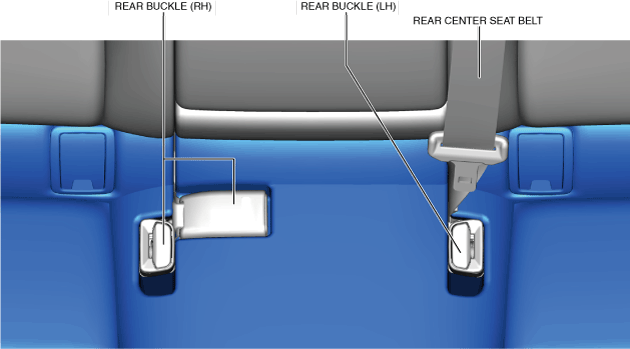

•  After installing the rear seat cushion, place the rear buckle as shown in the figure.

ac30zw00002738
