IMMOBILIZER SYSTEM-RELATED PARTS PROGRAMMING [(E)]

id0914005147x2

Caution

•  To prevent a failure in programming the immobilizer system-related parts, do not implement other functions of the M-MDS (including tab operation) when programming immobilizer system-related parts.

•  If any metallic or magnetic object is near the remote transmitter, communication between the remote transmitter and the vehicle may be obstructed, resulting in a failure to program the immobilizer system-related parts. Remove any metallic or magnetic objects, such as key holders, from the remote transmitter when programming immobilizer system-related parts.

•  If a remote transmitter is near the vehicle during immobilizer system-related parts programming, it may be programmed mistakenly. Keep the remote transmitter 1 m away from the vehicle unless indicated in the procedure.

•  If any of the following devices are inside the vehicle, programming of immobilizer system-related parts may fail. Do not bring any of the following devices or similar products inside the vehicle when programming immobilizer system-related parts.

―  M-MDS

―  Personal computer

―  Devices that can send/receive radio waves

•  To prevent a false engine start, do not depress the brake pedal (ATX)/clutch pedal (MTX) unless indicated in the procedure.

•  To prevent a failure in programming the immobilizer system-related parts, turn off (disable) the pacemaker radio wave interference prevention function and the power saving function of the remote transmitter when programming immobilizer system-related parts.

Note

•  When programming the immobilizer system-related parts, the incode must be searched.

•  The following items are displayed on the M-MDS. Select the item according to the service content.

•  A maximum of six remote transmitters can be programmed to one vehicle.

•  Before beginning the procedure, verify that the customer has provided all of the remote transmitters for the vehicle.

1.  Shift the selector lever to the P position. (ATX)

2.  Shift the shift lever to the neutral position. (MTX)

3.  Operate the parking brake.

4.  Connect the M-MDS to the DLC-2.

5.  Switch the ignition ON (engine off).

6.  Activate the M-MDS and perform the following procedure.

(1)  Press [Start] to start the vehicle identification.

(2)  Press the [Toolbox] tab.

(3)  Press the [Work Support] icon.

(4)  Press [SECURITY AND LOCKS].

(5)  Press [IMMOBILIZER].

7.  Select the following items according to the maintenance contents.

Item displayed in M-MDS	Service content	Items to be prepared
Activating extra Advanced Key	Select when programming an additional advanced key with the immobilizer system operating normally (engine start possible).	Valid remote transmitter
		Remote transmitter to be programmed
Deactivating and activating Advanced Key	Select when replacing an advanced key if the key was lost.	Remote transmitter to be programmed
Replacing Immobilizer related module	Select when replacing an immobilizer system-related module (body control module (BCM)/LF control unit/PCM/steering lock unit).	Remote transmitter to be programmed

8.  Perform immobilizer system-related part programming according to the directions on the M-MDS.

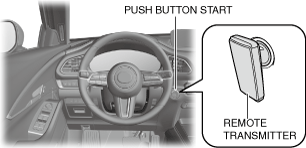

9.  Touch the push button start with the emblem side of the remote transmitter and verify that the engine starts.

ac30zw00004985

Note

•  Verify that the engine starts with all of the programmed remote transmitters.

10.  Verify that the engine starts while the remote transmitter is not in contact with the push button start.

―  If the engine does not start, check for DTCs. (See DTC TABLE [PCM (SKYACTIV-G (E))].) (See DTC TABLE [PCM (SKYACTIV-D)].) (See DTC TABLE [PCM (SKYACTIV-X)].) (See DTC TABLE [BODY CONTROL MODULE (BCM) (E)].)

11.  Verify that no DTC is displayed.

12.  If servicing is performed after turning off (disabling) the pacemaker radio wave interference prevention function and the power saving function of the remote transmitter, turn on (enable) the functions.
