DEFLECTOR REMOVAL/INSTALLATION

DEFLECTOR REMOVAL/INSTALLATION

id091500800400

1.  Fully open the glass panel.

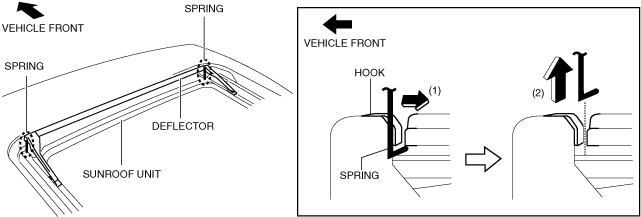

2.  Remove the springs in the direction of arrow (2), while moving the springs in the direction of arrow (1).

Caution
•  Carefully remove the spring so as not to damage the hook. If the spring is removed forcefully, the hook located at the spring installation area may be damaged.
am3zzw00023863

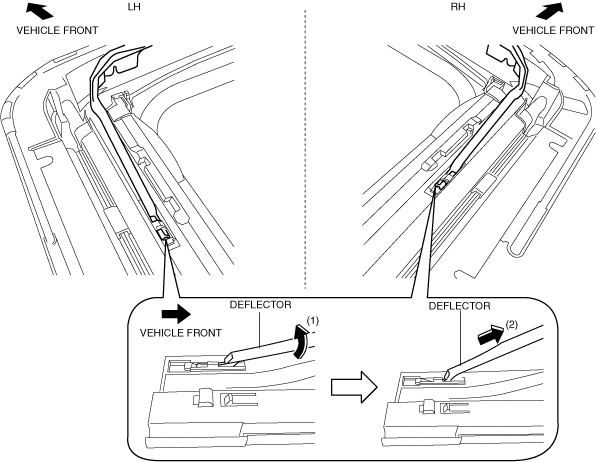

3.  Remove the deflector while lifting it up in the direction of arrow (1) shown in the figure and moving it in the direction of arrow (2).

am3zzw00023864

4.  Install in the reverse order of removal.
