FRONT FENDER MOLDING REMOVAL/INSTALLATION
id091600802100
Removal

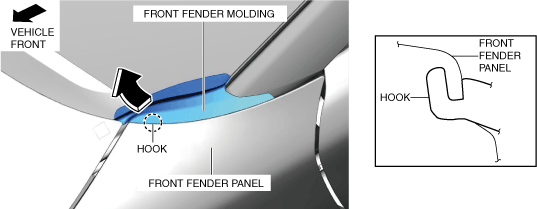

1. Pull the front fender molding in the direction of the arrow shown in the figure and detach the hook from the front fender panel.
ac30zw00001460
|

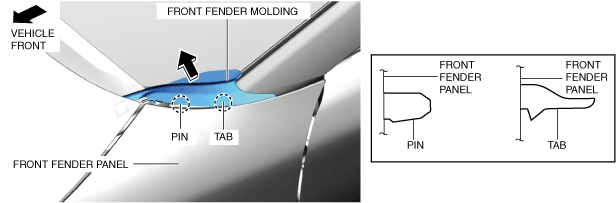

2. Move the front fender molding in the direction of the arrow and detach the pin and tab.
ac30zw00001461
|

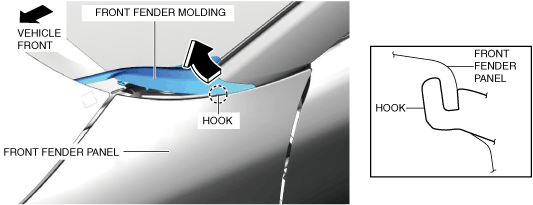

3. Remove the front fender molding in the direction of the arrow shown in the figure while detaching the hook from the front fender panel.
ac30zw00001462
|
Installation

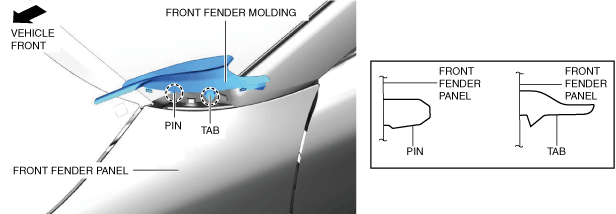

1. Install the pin and tab.
am3zzw00023908
|

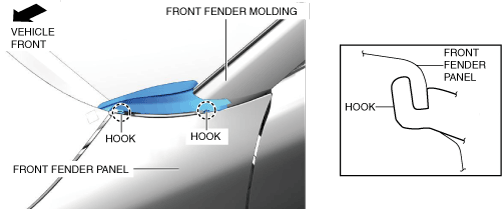

2. Install the hooks to the front fender panel and install the front fender molding.
am3zzw00023909
|
