UPPER FACE REMOVAL/INSTALLATION
id091600882400
1. Detach the hood latch protector tabs from the hood latch and remove the hood latch protector.
ac30zw00001497
|
2. Open the engine cover. (SKYACTIV-X 2.0) (See ENGINE COVER OPEN/CLOSE [SKYACTIV-X 2.0].)

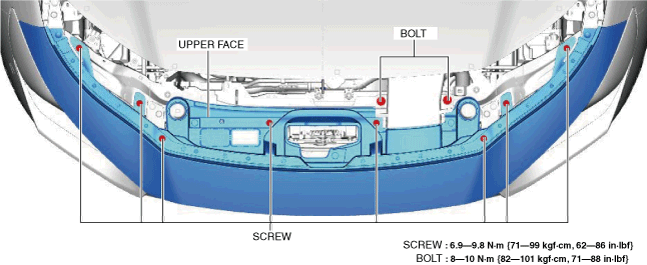

3. Remove the bolts and screws.

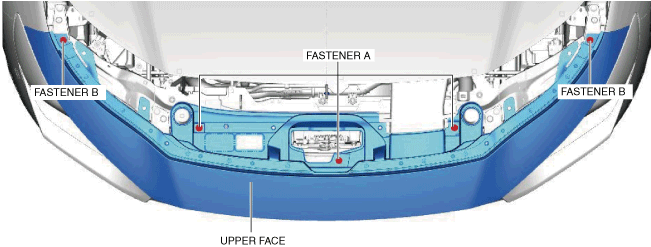

ac30zw00001498
|
4. Remove the fasteners A and B.
ac30zw00001499
|

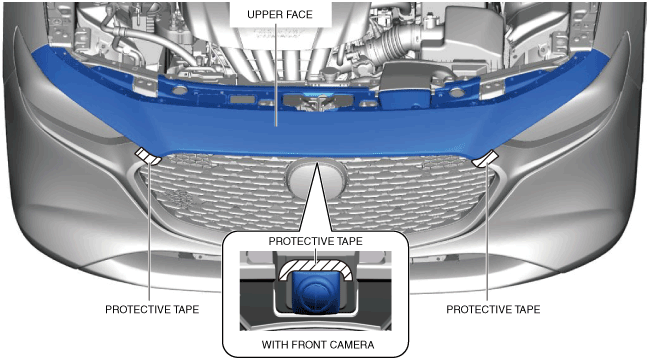

5. To prevent scratches or damage, apply protective tape to the positions shown in the figure.

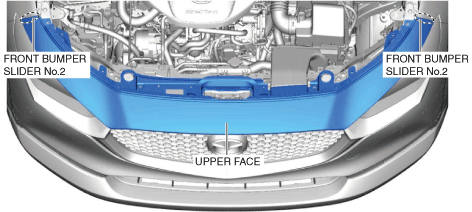

ac30zw00004561
|
6. Detach the upper face from the front bumper slider No.2.
ac30zw00001500
|
7. Move the upper fascia in the direction of arrow (1) shown in the figure and detach the clips from the front bumper.

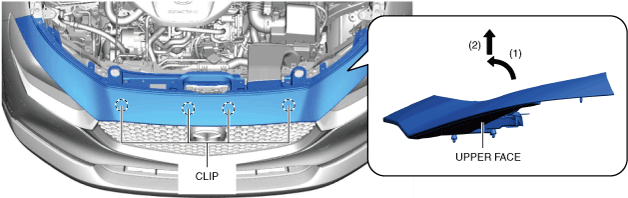

ac30zw00005331
|
8. Remove the upper fascia in the direction of arrow (2) shown in the figure.
9. Install in the reverse order of removal.
