FRONT UNDER COVER No.1 REMOVAL/INSTALLATION
id091600888800
1. Lift up the vehicle.
2. Remove the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

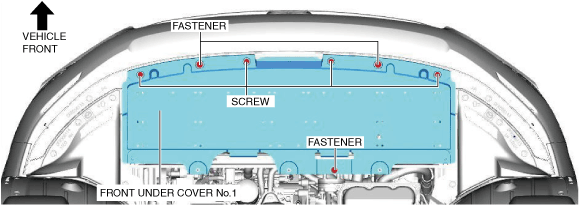

3. Remove the screws and fasteners shown in the figure.
ac30zw00001505
|

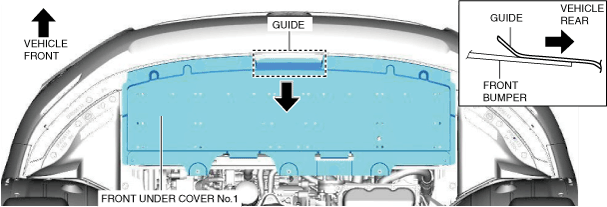

4. Remove the front under cover No.1 in the direction of the arrow shown in the figure while detaching the guide.
ac30zw00001506
|
5. Install in the reverse order of removal.
