DEFLECTOR REMOVAL/INSTALLATION

DEFLECTOR REMOVAL/INSTALLATION

id091600900500


Front Deflector

1.  Lift up the vehicle.

2.  Remove the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

3.  Remove the fasteners and screws.

ac30zw00001508

4.  Remove the front deflector.

5.  When removing the front deflector No.2 from front deflector No.1, perform the following procedure:

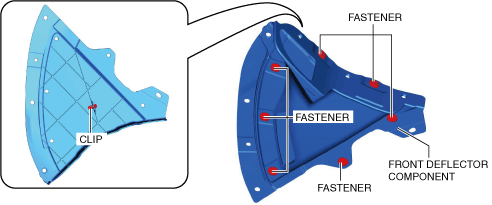

(1)  Remove the fasteners and clip.
ac30zw00001509
(2)  Remove the front deflector No.2 from the front deflector No.1.
ac30zw00001510

6.  Install in the reverse order of removal.


Rear Deflector

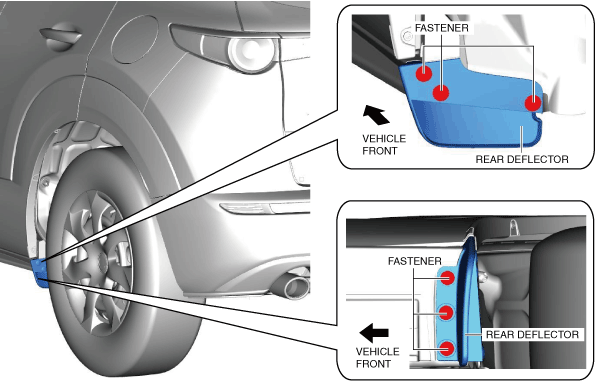

1.  Remove the fasteners.

ac30zw00001511

2.  Remove the rear deflector.

3.  Install in the reverse order of removal.
